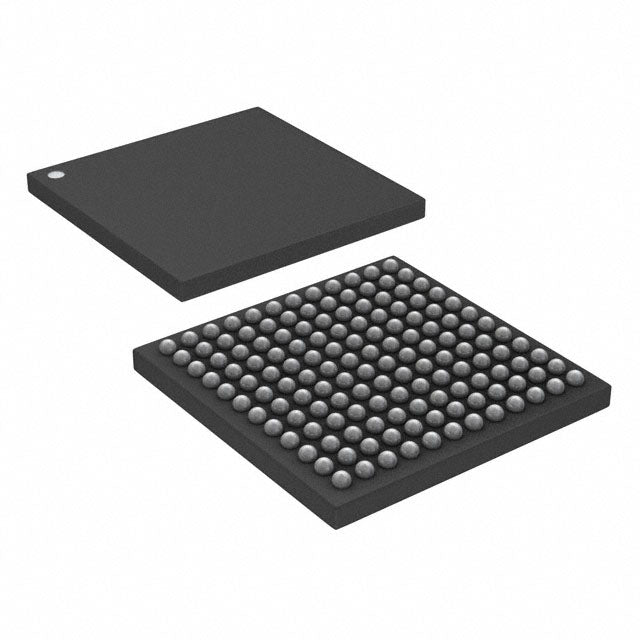

STMicroelectronics STM32F733ZEI6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $39.03 | $39.03 |
| 15+ | $8.98 | $134.70 |
| 25+ | $8.78 | $219.50 |
| 50+ | $8.30 | $415.00 |
| 100+ | $7.32 | $732.00 |
| N+ | $1.46 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F7 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core |
| Speed | 216MHz |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 112 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-UFBGA (7x7) |
| Package / Case | 144-UFBGA |
| ROHS |  |
The STM32F733ZEI6 from STMicroelectronics is a high-performance 32-bit microcontroller based on the ARM Cortex-M7 core. Operating at 216MHz, it provides 512KB flash and 256KB RAM. With a supply voltage range of 1.7V to 3.6V and a 144-UFBGA package, it is designed for advanced applications requiring intensive computation, audio, and motor control.
- 216MHz Cortex-M7 core: Exceptional processing power for complex algorithms.
- Large 256KB RAM: Supports data-intensive applications.
- Low voltage operation (1.7V): Enables battery-powered designs.
- Rich peripherals (I2S, PWM, DMA): Versatile for various applications.
High-End Audio Processing
The Cortex-M7 core with I2S support enables high-fidelity audio codec interfaces.
Industrial HMI
216MHz speed and 256KB RAM handle graphical user interfaces with smooth rendering.
Motor Control
Advanced PWM timers and ADC support field-oriented control of BLDC motors.
Medical Imaging
High computational power processes ultrasound and imaging data in real time.
Robotics
DMA and fast interrupt handling enable complex motion planning and sensor fusion.
Smart Home Hubs
Rich connectivity options and low voltage operation suit IoT gateway devices.
- Q: What core does the STM32F733ZEI6 use?
- A: It is based on the ARM Cortex-M7 core running at 216MHz.
- Q: What is the memory configuration?
- A: It has 512KB flash and 256KB RAM.
- Q: What is the supply voltage range?
- A: It operates from 1.7V to 3.6V.
- Q: What package is available?
- A: It comes in a 144-UFBGA package.
- Q: Does it support I2S and PWM?
- A: Yes, it includes I2S, PWM, DMA, and multiple communication interfaces.
