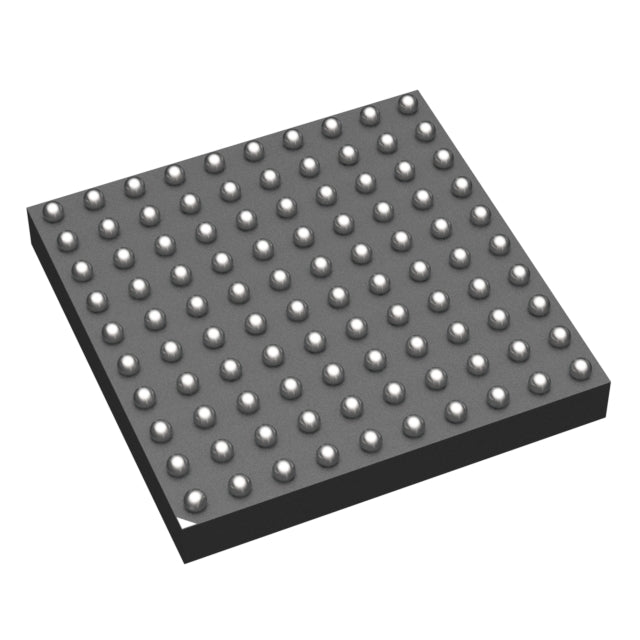

STMicroelectronics STM32F745VGH7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $43.13 | $43.13 |
| 15+ | $9.92 | $148.80 |
| 25+ | $9.70 | $242.50 |
| 50+ | $9.16 | $458.00 |
| 100+ | $8.09 | $809.00 |
| N+ | $1.62 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F7 |
| Packaging | Bulk | NULL |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit |
| Speed | 216MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, Temp Sensor, TRNG, WDT |
| Number of I/O | 82 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 320K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 16x12b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-TFBGA (8x8) |
| Package / Case | 100-TFBGA |
| ROHS |  |
The STM32F745VGH7 is a powerful STMicroelectronics MCU featuring an ARM Cortex-M7 core at 216 MHz. It offers 1MB flash and 320KB RAM, along with advanced security features like TRNG. Operating from 1.7V to 3.6V, it comes in a 100-TFBGA package, ideal for high-performance embedded applications.
- Enhanced Security: Integrated TRNG supports cryptographic operations for secure data transmission.
- Large Memory: 1MB flash and 320KB RAM accommodate complex applications and data buffering.
- High-Performance Core: 216 MHz Cortex-M7 with DSP instructions accelerates signal processing tasks.
- Comprehensive Feature Set: Includes Temp Sensor, DMA, and PWM for versatile system integration.
Secure IoT Endpoints
The integrated TRNG and 216 MHz Cortex-M7 enable hardware-accelerated encryption and secure boot for connected devices.
Audio Processing Units
With I2S and high-speed PWM, it can handle multi-channel audio codecs and digital signal processing for professional sound equipment.
Advanced HMI Systems
Its 1MB flash allows storing complex GUI assets, while the fast core drives high-resolution displays with smooth animations.
Industrial Servo Drives
Multiple PWM timers and 320KB RAM support precise, high-frequency current control loops for servo motors.
Smart Grid Meters
The wide voltage range and Temp Sensor enable accurate power monitoring and thermal management in smart meters.
Medical Wearables
Low-power modes and rich analog features make it suitable for continuous health monitoring with real-time data processing.
- Q: What is the core and speed of STM32F745VGH7?
- A: It uses an ARM Cortex-M7 core running at 216 MHz.
- Q: What memory is available?
- A: It has 1MB flash and 320KB RAM.
- Q: Does it have a TRNG?
- A: Yes, it includes a True Random Number Generator for security applications.
- Q: What is the operating temperature?
- A: It operates from -40°C to 105°C.
