STMicroelectronics STM32F746IEK6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $24.50 | $24.50 |
| 15+ | $16.10 | $241.50 |
| 25+ | $15.75 | $393.75 |
| 50+ | $14.88 | $744.00 |
| 100+ | $13.13 | $1,313.00 |
| N+ | $2.63 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F7 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core |
| Speed | 216MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 140 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 320K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

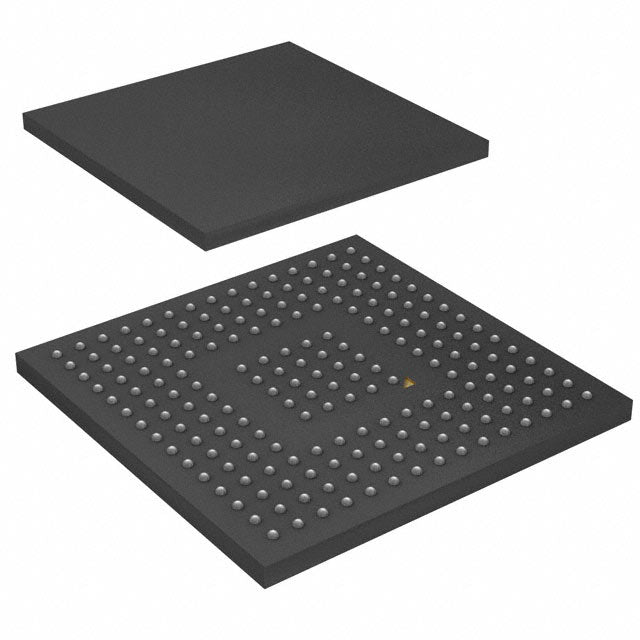

| Supplier Device Package | 176-UFBGA (10x10) |
| Package / Case | 176-UFBGA |
| ROHS |  |
The STM32F746IEK6 from STMicroelectronics is a high-performance MCU based on the ARM Cortex-M7 core, operating at up to 216 MHz. It features 512 KB of flash memory and 320 KB of RAM, with a supply voltage range of 1.7V to 3.6V. This device integrates advanced peripherals including LCD controller, DMA, I2S, PWM, and watchdog timers. Housed in a 176-UFBGA package, it operates from -40°C to 85°C, making it ideal for a wide range of embedded applications.
- High Performance: 216 MHz Cortex-M7 core delivers superior processing power.
- Rich Graphics: Integrated LCD-TFT controller supports advanced GUIs.
- Low Voltage Operation: 1.7V minimum enables battery-powered designs.
- Large RAM: 320 KB RAM for complex real-time applications.
- Comprehensive Peripherals: I2S, DMA, and PWM reduce external components.
Advanced HMI Displays
The Cortex-M7 core and LCD controller enable rich graphical user interfaces for medical devices and industrial equipment.
IoT Edge Nodes
With low voltage operation and DMA, it efficiently handles sensor data and communication protocols for smart building systems.
Audio Processing
I2S and high-speed processing support audio codecs for voice recognition and sound synthesis.
Motor Control
PWM and WDT ensure precise and safe control of brushless DC motors in drones and robotics.
Portable Instrumentation
Low power modes and wide voltage range make it suitable for battery-powered measurement tools.
Consumer Electronics
High performance and rich peripherals enable smart appliances and wearable devices.
- Q: What is the core of the STM32F746IEK6?
- A: It uses an ARM Cortex-M7 core.
- Q: What is the maximum operating frequency?
- A: It runs at up to 216 MHz.
- Q: How much flash memory is available?
- A: It has 512 KB of flash memory.
- Q: What is the supply voltage range?
- A: It operates from 1.7V to 3.6V.
- Q: Does it have an LCD controller?
- A: Yes, it includes an LCD-TFT controller.
