STMicroelectronics STM32F746NGH6E
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F7 |
| Packaging | | Tray |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core |
| Speed | 216MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 168 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 320K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

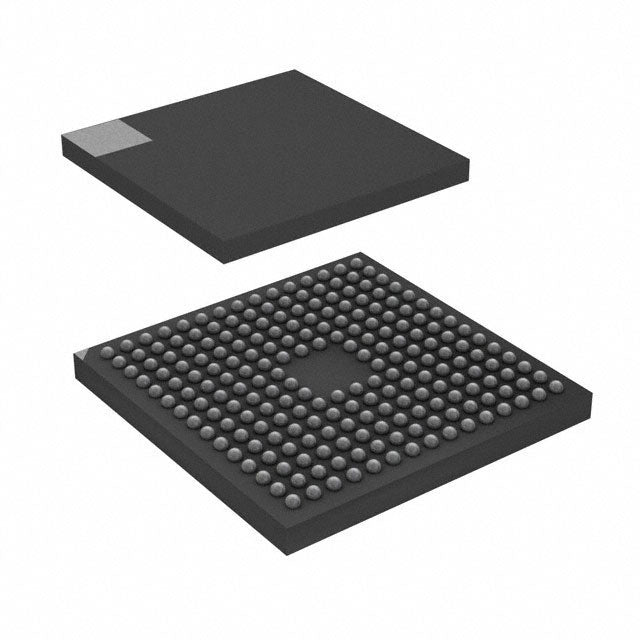

| Supplier Device Package | 216-TFBGA (13x13) |
| Package / Case | 216-TFBGA |
The STM32F746NGH6E is a high-performance microcontroller from STMicroelectronics, featuring an ARM Cortex-M7 core at 216 MHz. It provides 1 MB of Flash and 320 KB of RAM, with an integrated LCD controller. This model comes in a compact 216-TFBGA package, ideal for space-constrained applications. It operates from 1.7V to 3.6V and within a temperature range of -40°C to 85°C, offering a robust solution for advanced embedded systems.
- Compact BGA Package: The 216-TFBGA package minimizes PCB area, enabling smaller and more portable product designs.
- High-Performance Core: The 216 MHz Cortex-M7 core delivers exceptional processing power for complex tasks.
- Ample Memory: 1 MB Flash and 320 KB RAM support large applications and data buffering.
- Advanced Connectivity: Includes Ethernet, USB, and multiple serial interfaces for flexible system integration.
Compact Medical Devices
The 216-TFBGA package saves board space, making it ideal for portable medical devices like handheld ultrasound and patient monitors.
High-Density Data Logging
With 1 MB Flash and 320 KB RAM, it can store large amounts of sensor data locally before transmission, perfect for environmental monitoring.
Advanced Driver Assistance Systems (ADAS)
Its high-speed processing and rich connectivity support sensor fusion and decision-making algorithms in automotive applications.
Industrial IoT Edge Nodes
The small footprint and powerful core enable edge computing in industrial settings, processing data locally to reduce latency and bandwidth usage.
Portable Test Instruments
The combination of processing power and compact packaging suits handheld spectrum analyzers and multimeters requiring high accuracy.
Secure Payment Terminals
With hardware cryptographic acceleration and a compact form factor, it is suitable for POS terminals and secure payment devices.
- Q: What package is the STM32F746NGH6E available in?
- A: It is available in a 216-TFBGA package.
- Q: What is the core speed?
- A: The core speed is 216 MHz.
- Q: How much Flash memory does it have?
- A: It has 1 MB of Flash memory.
- Q: What is the supply voltage?
- A: The supply voltage range is 1.7V to 3.6V.
