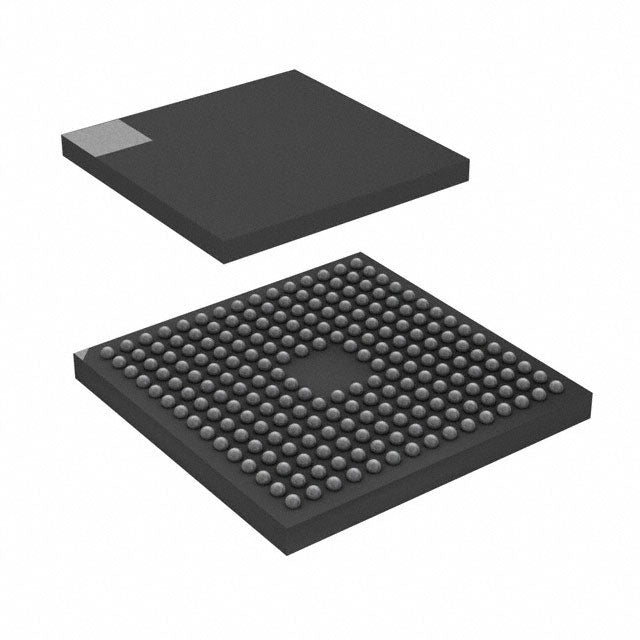

STMicroelectronics STM32F746NGH7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $54.58 | $54.58 |
| 15+ | $12.55 | $188.25 |
| 25+ | $12.28 | $307.00 |
| 50+ | $11.59 | $579.50 |
| 100+ | $10.23 | $1,023.00 |
| N+ | $2.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F7 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core |
| Speed | 216MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 168 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 320K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 216-TFBGA (13x13) |
| Package / Case | 216-TFBGA |
| ROHS |  |
The STM32F746NGH7 is a high-performance ARM Cortex-M7 microcontroller from STMicroelectronics, running at up to 216MHz. It features 1MB of flash and 320KB of RAM, with a comprehensive set of peripherals including LCD controller, I2S, DMA, PWM, and multiple safety features like brown-out detection and POR. It operates from 1.7V to 3.6V and is available in a 216-pin TFBGA package, suitable for advanced embedded applications.
- Exceptional processing power: 216MHz Cortex-M7 with DSP instructions accelerates complex algorithms.
- Large memory: 1MB flash and 320KB RAM support complex applications and multitasking.
- Integrated LCD controller: Eliminates external display driver ICs, reducing BOM cost.
- Wide temperature range: -40°C to 105°C for industrial and automotive environments.
- Rich connectivity: I2S, DMA, and multiple communication interfaces enable versatile system design.
High-End HMI Displays
The integrated LCD controller and 216MHz Cortex-M7 enable smooth graphical user interfaces with rich animations on TFT panels.
Audio Processing Systems
With I2S support and 320KB RAM, it can handle high-fidelity audio streaming and DSP effects in professional audio equipment.
Industrial Vision Cameras
The high clock speed and DMA facilitate real-time image capture and preprocessing from CMOS sensors.
IoT Gateways
1MB flash allows running multiple protocol stacks (Ethernet, USB, CAN) simultaneously for smart building gateways.
Medical Diagnostic Devices
The -40°C to 105°C range and rich peripherals support portable ultrasound or patient monitoring systems.
Motor Control with Predictive Maintenance
PWM timers and DSP capabilities enable advanced FOC algorithms with vibration analysis for industrial drives.
