STMicroelectronics STM32F746ZEY6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.34 | $18.34 |
| 15+ | $12.05 | $180.75 |
| 25+ | $11.79 | $294.75 |
| 50+ | $11.14 | $557.00 |
| 100+ | $9.83 | $983.00 |
| N+ | $1.97 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F7 |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core |
| Speed | 216MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 114 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 320K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

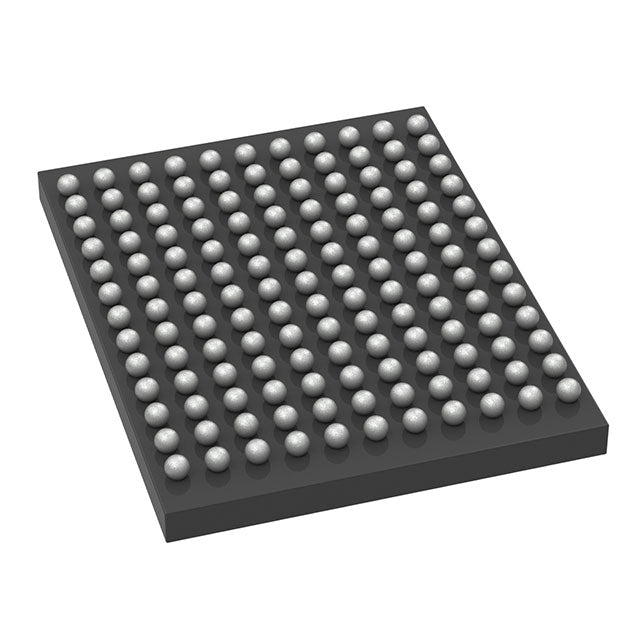

| Supplier Device Package | 143-WLCSP (4.54x5.85) |
| Package / Case | 143-UFBGA, WLCSP |
| ROHS |  |
The STMicroelectronics STM32F746ZEY6TR is a high-performance 32-bit microcontroller based on the ARM Cortex-M7 core, operating at up to 216MHz. It features 512KB of flash and 320KB of RAM, providing substantial resources for complex applications. With an integrated LCD controller, I2S, and extensive peripherals, it is designed for advanced graphical and audio applications. The 143-UFBGA package offers a compact footprint for space-constrained designs.
- Exceptional Performance: 216MHz Cortex-M7 core with DSP instructions for intensive computations.
- Integrated LCD Controller: Simplifies GUI design without external display drivers.
- Large RAM: 320KB SRAM supports complex applications and multitasking.
- Advanced Connectivity: I2S, DMA, and multiple communication interfaces enhance system integration.
Human-Machine Interfaces (HMI)
The integrated LCD controller and 216MHz Cortex-M7 core enable rich graphical user interfaces on TFT displays.
Audio Processing
With I2S support and high-speed processing, it handles audio codecs and effects in professional equipment.
Industrial Automation
Its DMA and PWM capabilities facilitate precise control in PLCs and robotic systems.
Smart Home Hubs
The powerful core and connectivity options make it ideal for central control units in smart homes.
Medical Imaging
High-speed data processing and large RAM support image capture and processing in portable devices.
Embedded Vision
The Cortex-M7 core with DSP instructions accelerates image processing algorithms for vision systems.
- Q: What is the maximum clock speed of the STM32F746ZEY6TR?
- A: It runs at up to 216MHz, delivering high performance for graphics and DSP tasks.
- Q: How much flash memory does it have?
- A: It includes 512KB of flash memory for application code.
- Q: What is the RAM size?
- A: It has 320KB of SRAM, supporting complex data structures and buffering.
- Q: Does it support LCD interfaces?
- A: Yes, it includes an LCD controller, making it suitable for GUI applications.
