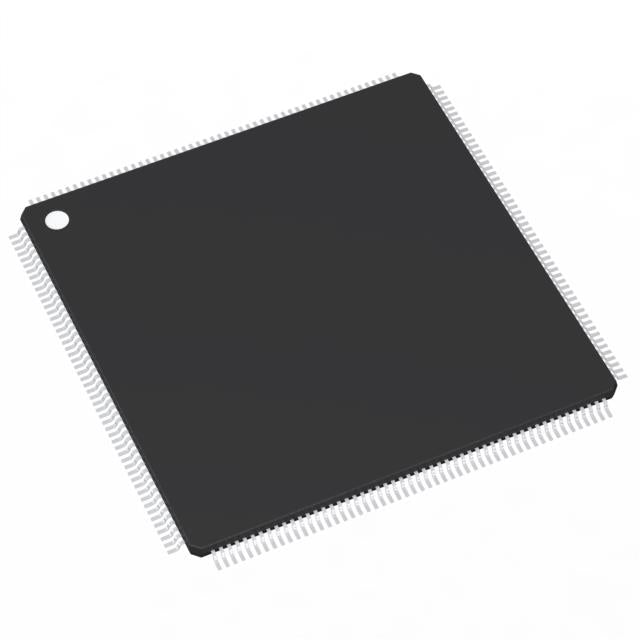

STMicroelectronics STM32F765BGT6
Regular price
$28.32
Regular price
$20.23
Sale price
$28.32
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $28.32 | $28.32 |
| 15+ | $18.61 | $279.15 |
| 25+ | $18.21 | $455.25 |
| 50+ | $17.20 | $860.00 |
| 100+ | $15.17 | $1,517.00 |
| N+ | $3.03 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F7 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core |
| Speed | 216MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 168 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 208-LQFP (28x28) |
| Package / Case | 208-LQFP |
| ROHS |  |
The STM32F765BGT6 from STMicroelectronics is a high-performance ARM Cortex-M7 MCU running at 216MHz. Featuring 1MB flash and 512KB RAM, it excels in audio, industrial, and medical applications. Its rich peripheral set includes I2S, PWM, and DMA for versatile system design.
- Exceptional speed: 216MHz Cortex-M7 with DSP.
- Large memory: 1MB flash + 512KB RAM.
- Advanced peripherals: I2S, PWM, DMA.
- Wide voltage range: 1.7V-3.6V for battery operation.
High-End Audio Interfaces
216MHz Cortex-M7 with I2S supports studio-grade audio processing.
Industrial Vision Systems
1MB flash stores image processing libraries for machine vision.
Smart Grid Meters
DMA and PWM enable accurate energy measurement.
Medical Imaging Devices
512KB RAM handles real-time signal processing.
Robotics Controllers
High-speed core with FPU for kinematics calculations.
Telecom Infrastructure
Robust peripherals support redundant communication links.
- Q: What is the core speed?
- A: 216MHz ARM Cortex-M7.
- Q: What is the flash size?
- A: 1MB flash.
- Q: How much RAM?
- A: 512KB RAM.
- Q: What voltage range?
- A: 1.7V to 3.6V.
- Q: What package?
- A: 208-LQFP.
Base Product Number ：
STM32F765BGT6
STM32F765BGT6.pdf
- Q: What is the core speed?
- A: 216MHz ARM Cortex-M7.
- Q: What is the flash size?
- A: 1MB flash.
- Q: How much RAM?
- A: 512KB RAM.
- Q: What voltage range?
- A: 1.7V to 3.6V.
- Q: What package?
- A: 208-LQFP.
×
