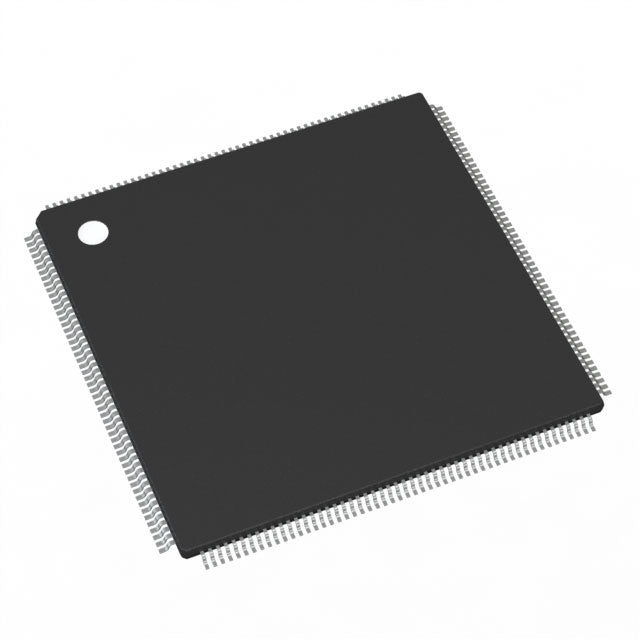

STMicroelectronics STM32F767BGT6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $20.20 | $20.20 |
| 15+ | $13.28 | $199.20 |
| 25+ | $12.99 | $324.75 |
| 50+ | $12.27 | $613.50 |
| 100+ | $10.82 | $1,082.00 |
| N+ | $2.16 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F7 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core |
| Speed | 216MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 159 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 208-LQFP (28x28) |
| Package / Case | 208-LQFP |
| ROHS |  |
The STMicroelectronics STM32F767BGT6 is a high-performance 32-bit microcontroller based on the ARM Cortex-M7 core, operating at up to 216MHz. It offers 1MB of flash memory and 512KB of SRAM, making it suitable for complex applications requiring large code and data storage. With a supply voltage range of 1.7V to 3.6V and a 208-LQFP package, it provides extensive I/O capabilities. The device includes advanced peripherals such as LCD controller, I2S, DMA, PWM, and brown-out detection, making it ideal for HMI, audio, and industrial applications.
- High Performance: 216MHz Cortex-M7 with double-precision FPU delivers exceptional computational power.
- Large RAM: 512KB SRAM supports complex real-time applications and large data buffers.
- Integrated LCD Controller: Simplifies GUI design, reducing external components and cost.
- Rich Connectivity: 208-pin package provides ample I/O for multiple interfaces and peripherals.
Human-Machine Interfaces (HMI)
The integrated LCD controller and high-speed Cortex-M7 enable rich graphical interfaces with smooth animations.
Industrial IoT Gateways
With 216MHz and 512KB RAM, it can handle multiple protocol stacks and edge processing for Industry 4.0.
Audio Processing
The I2S interface and DSP capabilities support high-quality audio applications like voice recognition and sound synthesis.
Medical Imaging
High memory and processing power allow real-time image processing in portable ultrasound and endoscopy devices.
Smart Home Hubs
Can manage multiple communication protocols and control various smart devices with its extensive peripherals.
Test and Measurement
High-speed ADC and PWM enable precise signal generation and analysis in laboratory equipment.
- Q: What is the core processor of the STM32F767BGT6?
- A: It uses an ARM Cortex-M7 core running at up to 216MHz, with double-precision FPU.
- Q: What is the supply voltage range?
- A: It operates from 1.7V to 3.6V, supporting low-power and standard 3.3V designs.
- Q: How much flash and RAM does it have?
- A: It features 1MB flash and 512KB RAM, providing high memory capacity for complex applications.
- Q: What package is available?
- A: It comes in a 208-LQFP package, offering many I/O pins for rich connectivity.
- Q: Does it support LCD interfaces?
- A: Yes, it includes an LCD controller, making it suitable for graphical user interfaces.
