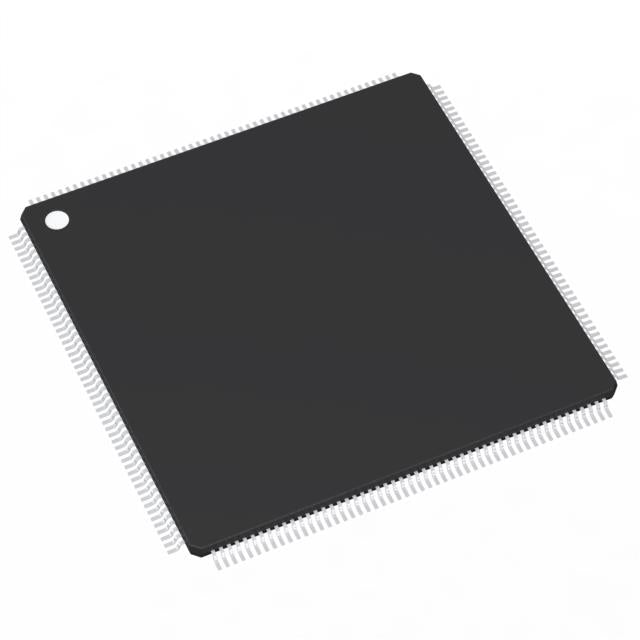

STMicroelectronics STM32F767BIT6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $31.78 | $31.78 |
| 15+ | $20.88 | $313.20 |
| 25+ | $20.43 | $510.75 |
| 50+ | $19.30 | $965.00 |
| 100+ | $17.03 | $1,703.00 |
| N+ | $3.41 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F7 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core |
| Speed | 216MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 159 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 208-LQFP (28x28) |
| Package / Case | 208-LQFP |
| ROHS |  |
The STM32F767BIT6 from STMicroelectronics is a high-performance 32-bit MCU featuring an ARM Cortex-M7 core at 216MHz. It provides 2MB of flash memory and 512KB of RAM, along with a rich set of peripherals including an LCD controller, I2S, DMA, and multiple timers. Operating from 1.7V to 3.6V, it is designed for advanced applications requiring intensive computation and multimedia support. The 208-LQFP package offers excellent thermal and electrical performance.
- 216MHz Cortex-M7: Provides exceptional processing power for complex algorithms.
- Integrated LCD controller: Eliminates the need for external display drivers.
- 2MB flash / 512KB RAM: Supports large applications and data storage.
- Wide voltage range (1.7V-3.6V): Enables low-power and battery-operated designs.
Human-Machine Interface (HMI) Panels
The integrated LCD controller and 216MHz Cortex-M7 enable smooth graphical rendering on TFT displays.
Industrial IoT Gateways
DMA and multiple communication interfaces support data aggregation from sensors and cloud connectivity.
Audio Processing Systems
I2S interface and high-speed PWM enable high-fidelity audio playback and digital signal processing.
Robotics Controllers
512KB RAM and 2MB flash support complex kinematics algorithms and multi-axis motor control.
Smart Home Hubs
Low power modes (1.7V operation) and rich peripherals enable always-on voice recognition and device control.
Medical Imaging Devices
High-speed ADC and DMA ensure real-time data acquisition for portable ultrasound and patient monitors.
- Q: What is the core processor?
- A: ARM Cortex-M7, providing high performance with floating-point unit.
- Q: What is the maximum clock speed?
- A: 216MHz, enabling intensive computation and real-time control.
- Q: How much flash and RAM does it have?
- A: 2MB flash and 512KB RAM, suitable for complex applications.
- Q: What display interfaces are supported?
- A: Integrated LCD controller and I2S for multimedia applications.
