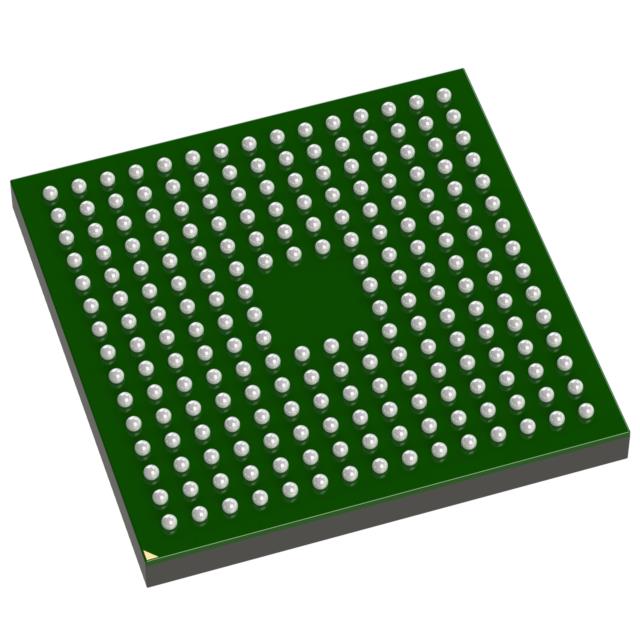

STMicroelectronics STM32F767NIH6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $59.09 | $59.09 |
| 15+ | $13.59 | $203.85 |
| 25+ | $13.29 | $332.25 |
| 50+ | $12.55 | $627.50 |
| 100+ | $11.08 | $1,108.00 |
| N+ | $2.22 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F7 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit |
| Speed | 216MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 168 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 216-TFBGA (13x13) |
| Package / Case | 216-TFBGA |
| ROHS |  |
The STM32F767NIH6TR from STMicroelectronics is a powerful 32-bit MCU built on the ARM Cortex-M7 core at 216MHz. It offers 2MB flash and 512KB RAM, with integrated LCD controller, DMA, I2S, and multiple safety features. Operating from 1.7V to 3.6V in a 216-TFBGA package, it is designed for high-performance embedded applications requiring rich connectivity and graphics.
- Exceptional Performance: 216MHz Cortex-M7 core with DSP instructions for intensive computation.
- Large Memory Footprint: 2MB flash and 512KB RAM support complex applications and data logging.
- Integrated Graphics: LCD controller simplifies display interfacing for HMI applications.
- Comprehensive Peripherals: DMA, I2S, PWM, and multiple timers provide design flexibility.
High-End Consumer Electronics
The 216MHz Cortex-M7 core and 2MB flash enable rich user interfaces and complex processing for smart appliances.
Industrial HMI Panels
Integrated LCD controller and DMA support smooth graphics rendering and touch response in industrial displays.
Audio Processing
I2S and high-speed core handle multi-channel audio codecs for professional mixing consoles.
Robotics
512KB RAM and PWM modules allow precise motor control and sensor fusion for autonomous robots.
Medical Imaging
High-speed processing and large memory buffer image data for portable ultrasound and diagnostic devices.
Smart Grid Infrastructure
Robust features and wide voltage range ensure reliable operation in power monitoring equipment.
- Q: What core does the STM32F767NIH6TR use?
- A: It is based on the ARM Cortex-M7 core running at 216MHz.
- Q: What is the memory capacity?
- A: It has 2MB of flash memory and 512KB of RAM.
- Q: What is the supply voltage range?
- A: It operates from 1.7V to 3.6V.
- Q: Does it support graphical displays?
- A: Yes, it includes an LCD controller and TFT interface.
- Q: What package is available?
- A: It comes in a 216-TFBGA package.
