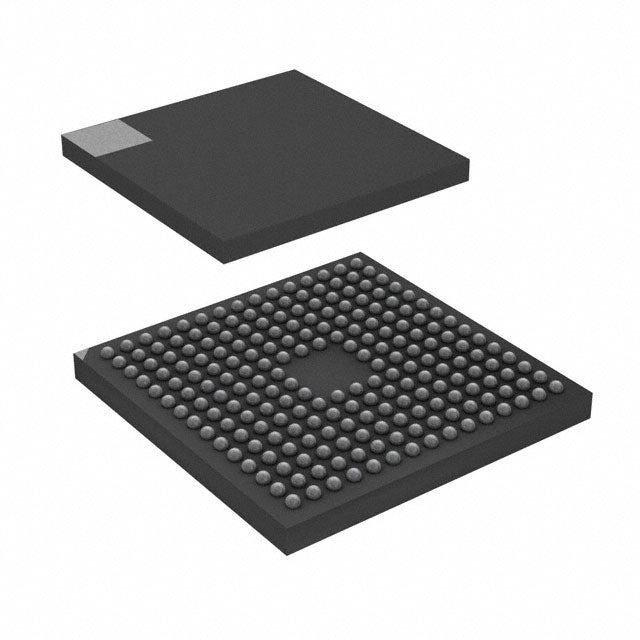

STMicroelectronics STM32F777NIH6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $33.59 | $33.59 |
| 15+ | $22.07 | $331.05 |
| 25+ | $21.59 | $539.75 |
| 50+ | $20.39 | $1,019.50 |
| 100+ | $17.99 | $1,799.00 |
| N+ | $3.60 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F7 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core |
| Speed | 216MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 159 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 216-TFBGA (13x13) |
| Package / Case | 216-TFBGA |
| ROHS |  |
The STM32F777NIH6 is a high-performance ARM Cortex-M7 microcontroller from STMicroelectronics. Operating at 216MHz, it provides 2MB of flash and 512KB of RAM. With an integrated LCD controller and a comprehensive set of peripherals, it is designed for advanced HMI, audio, and industrial applications.
- Integrated LCD Controller: Enables direct driving of graphical displays, reducing external components.
- High Processing Power: 216MHz Cortex-M7 core handles complex algorithms and user interfaces.
- Large Memory: 2MB flash and 512KB RAM support extensive applications and data storage.
- Rich Peripheral Set: Includes DMA, I2S, PWM, and multiple safety features for versatile designs.
Advanced HMI Systems
The integrated LCD controller and high-speed Cortex-M7 core enable rich graphical user interfaces for industrial panels and medical devices.
High-Performance Audio
With I2S and 216MHz processing, it supports multi-channel audio processing for professional sound systems and musical instruments.
Industrial Control Systems
Its robust feature set, including PWM and DMA, makes it ideal for complex motion control and process automation.
Smart Building Controllers
The combination of processing power and display support allows for centralized control of lighting, HVAC, and security systems.
Medical Imaging Devices
High-speed data processing and large memory facilitate real-time image processing in ultrasound and endoscopy equipment.
Telecommunication Infrastructure
Reliable operation and high throughput support base station control and network synchronization tasks.
- Q: What is the core processor of the STM32F777NIH6?
- A: It is based on the ARM Cortex-M7 core, running at up to 216MHz.
- Q: How much memory does it have?
- A: It includes 2MB of flash and 512KB of RAM.
- Q: What are the key features?
- A: It features DMA, I2S, LCD, POR, PWM, WDT, and Brown-out Detect/Reset.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
- Q: What package is available?
- A: It comes in a 216-TFBGA package.
