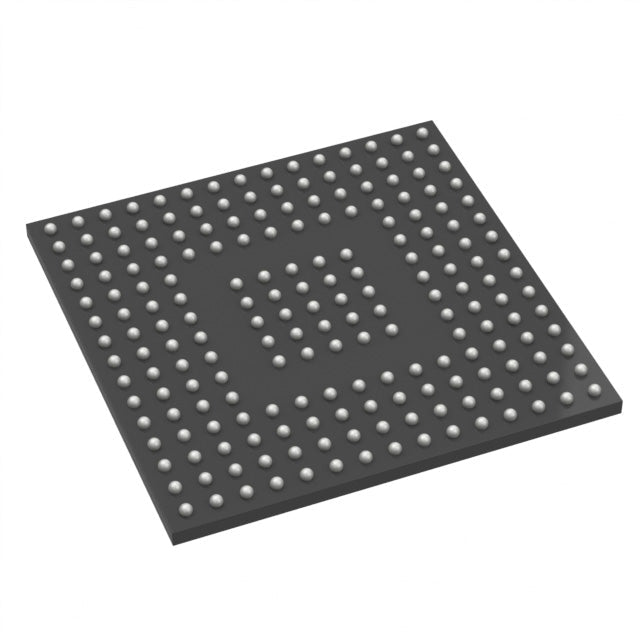

STMicroelectronics STM32F779AIY6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $27.72 | $27.72 |
| 15+ | $18.22 | $273.30 |
| 25+ | $17.82 | $445.50 |
| 50+ | $16.83 | $841.50 |
| 100+ | $14.85 | $1,485.00 |
| N+ | $2.97 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F7 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core |
| Speed | 216MHz |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 129 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 180-WLCSP (5.5x6) |
| Package / Case | 180-UFBGA, WLCSP |
| ROHS |  |
The STM32F779AIY6TR from STMicroelectronics is a high-performance ARM Cortex-M7 MCU. Running at 216MHz, it offers 2MB flash and 512K RAM. It includes advanced features like a TFT-LCD controller, I2S, and cryptographic acceleration. Packaged in a compact 180-UFBGA, it is ideal for demanding consumer and industrial applications.
- Exceptional Performance: The 216MHz Cortex-M7 core with double-precision FPU accelerates complex calculations.
- Large Memory: 2MB flash and 512K RAM support complex applications and graphics buffers.
- Rich Connectivity: Includes Ethernet, USB, and camera interfaces for versatile system design.
- Advanced Security: Hardware cryptographic acceleration and secure boot for protected applications.
High-End Consumer Electronics
Powers smart displays and audio systems with its 216MHz Cortex-M7 and LCD controller, enabling rich user interfaces.
Industrial HMI
Provides graphical interfaces for industrial machines, leveraging the TFT-LCD controller and high-speed processing.
IoT Gateways
Handles complex networking protocols and edge processing with its 2MB flash and 512K RAM.
Medical Devices
Supports portable diagnostic equipment with its low power modes and high computational capability.
Audio Processing
Ideal for audio effects and voice recognition, with I2S interfaces and DSP instructions.
Smart Home Hubs
Manages multiple communication protocols and device control, with robust security features.
- Q: What is the core processor of the STM32F779AIY6TR?
- A: It uses an ARM Cortex-M7 core running at 216MHz.
- Q: How much flash memory is available?
- A: It has 2MB of flash memory.
- Q: What is the RAM size?
- A: It includes 512K x 8 of RAM.
- Q: What package is this device in?
- A: It is available in a 180-UFBGA or WLCSP package.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C (TA).
