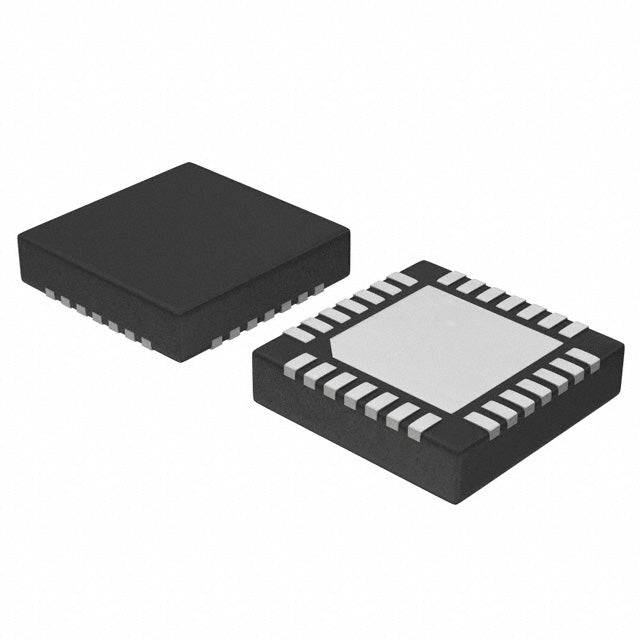

STMicroelectronics STM32G061G8U6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.97 | $2.97 |
| 15+ | $1.95 | $29.25 |
| 25+ | $1.91 | $47.75 |
| 50+ | $1.80 | $90.00 |
| 100+ | $1.59 | $159.00 |
| N+ | $0.32 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32G0 |
| Packaging | Bulk | |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core |
| Speed | 64MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, SmartCard, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 26 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 18K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 17x12b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-UFQFPN (4x4) |
| Package / Case | 28-UFQFN |
| ROHS |  |
The STM32G061G8U6 is a high-performance 32-bit microcontroller from STMicroelectronics, based on the ARM Cortex-M0+ core running at up to 64MHz. It offers 64KB of Flash memory and 18KB of RAM, packaged in a compact 28-pin UFQFN. Operating from 1.7V to 3.6V, it includes advanced peripherals such as DMA, I2S, PWM, brown-out reset, power-on reset, and watchdog timer. Designed for a wide range of applications, it operates from -40°C to +85°C.
- ARM Cortex-M0+ Core: Industry-standard architecture with extensive software support and low power consumption.
- High Memory Capacity: 64KB Flash and 18KB RAM enable complex applications without external memory.
- Rich Peripheral Set: DMA, I2S, and PWM reduce CPU load and simplify system design.
- Compact UFQFN Package: Saves PCB space, ideal for miniaturized products.
- Low Voltage Operation: Down to 1.7V, perfect for single-cell battery applications.
IoT Edge Nodes
The Cortex-M0+ core at 64MHz with 64KB Flash can handle MQTT protocols and sensor data processing. The 1.7V operation allows direct battery power.
Motor Control for Drones
With DMA and PWM peripherals, this MCU can generate precise control signals for brushless motors. The 18KB RAM supports complex control algorithms.
Portable Medical Devices
Low power consumption and small package make it ideal for wearable health monitors. The I2S interface enables audio processing for hearing aids.
Smart Home Controllers
Use the multiple communication interfaces to connect with sensors and actuators. The 64MHz speed ensures responsive user interfaces.
Industrial Automation
The brown-out detect and watchdog timer ensure reliable operation in noisy environments. The wide temperature range supports factory floor deployment.
Consumer Electronics
From smart watches to gaming peripherals, the STM32G061 provides a balance of performance and power efficiency.
- Q: What is the core processor?
- A: It uses an ARM Cortex-M0+ core running at up to 64MHz, offering high efficiency.
- Q: What is the supply voltage range?
- A: It operates from 1.7V to 3.6V, suitable for low-power and battery applications.
- Q: How much memory does it have?
- A: It includes 64KB Flash and 18KB RAM, providing ample space for complex firmware.
- Q: What package is available?
- A: It comes in a 28-pin UFQFN package, compact for space-limited designs.
- Q: What is the operating temperature range?
- A: It operates from -40°C to +85°C, suitable for most commercial and industrial environments.
