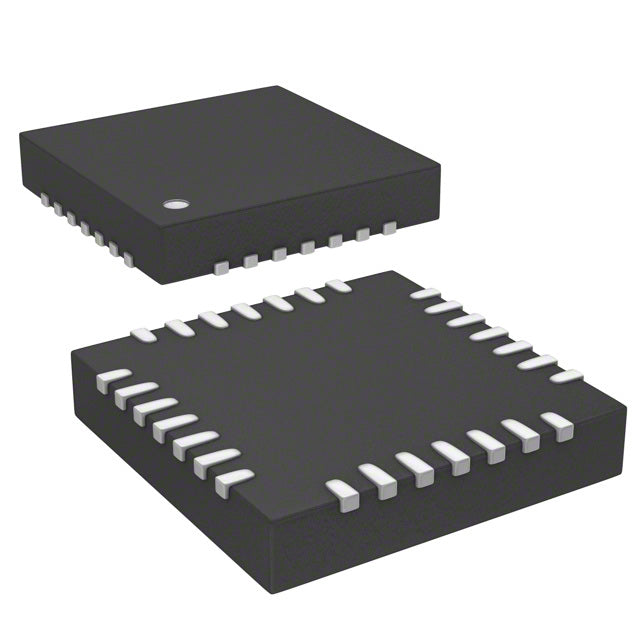

STMicroelectronics STM32G071GBU6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.23 | $4.23 |
| 15+ | $2.78 | $41.70 |
| 25+ | $2.72 | $68.00 |
| 50+ | $2.57 | $128.50 |
| 100+ | $2.27 | $227.00 |
| N+ | $0.45 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32G0 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core |
| Speed | 64MHz |
| Connectivity | HDMI-CEC, I2C, IrDA, LINbus, SPI, UART/USART, USB Type-C™ (Power Delivery) |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, Temp Sensor, WDT |
| Number of I/O | 26 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 36K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 12x12b; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-UFQFPN (4x4) |
| Package / Case | 28-UFQFN |
| ROHS |  |
The STMicroelectronics STM32G071GBU6TR is a 32-bit ARM Cortex-M0+ MCU with 128KB Flash and 36KB RAM. Operating at 64MHz from 1.7V to 3.6V, it comes in a compact 28-UFQFN package. With DMA, I2S, PWM, and a temp sensor, it is designed for efficient, connected embedded systems.
- Efficient 32-bit Core: ARM Cortex-M0+ provides 32-bit performance with low power consumption, ideal for battery devices.
- Large Memory: 128KB Flash and 36KB RAM support complex applications and data buffering without external memory.
- Rich Peripherals: DMA, I2S, and PWM enable advanced audio, motor control, and data streaming applications.
- Ultra-Low Voltage: 1.7V operation allows direct battery connection, reducing power conversion losses.
IoT Edge Nodes
With 128KB Flash and 36KB RAM, the STM32G071GBU6TR can run lightweight IoT protocols (MQTT, CoAP) and sensor fusion algorithms, while its low-power modes extend battery life.
Industrial Sensors
The 64MHz Cortex-M0+ core and DMA enable high-speed data acquisition from multiple sensors, with I2S for audio or precision data streaming.
Portable Consumer Electronics
Its 1.7V minimum supply and small 28-UFQFN package make it ideal for wearables and smart accessories, where space and power are critical.
Motor Control
The PWM and temp sensor features support sensorless FOC control for small BLDC motors in drones and robotics, ensuring smooth operation.
Smart Home Controllers
With rich peripherals (DMA, I2S, PWM), it can manage lighting, HVAC, and security systems, providing a central hub for home automation.
Medical Monitoring Devices
Its reliability features (Brown-out Detect/Reset, WDT) and low-power operation make it suitable for portable patient monitors and wearable health trackers.
- Q: What core does the STM32G071GBU6TR use?
- A: It is based on the ARM Cortex-M0+ core, offering a balance of performance and low power.
- Q: What is the maximum clock speed?
- A: It operates at up to 64MHz, suitable for real-time applications.
- Q: How much Flash and RAM does it have?
- A: It features 128KB Flash and 36KB RAM, providing ample resources for complex firmware.
- Q: What is the supply voltage range?
- A: It operates from 1.7V to 3.6V, supporting low-voltage and battery-powered designs.
