STMicroelectronics STM32G081RBI6
Regular price
$8.64
Regular price
$2.16
Sale price
$8.64
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.64 | $8.64 |
| 15+ | $1.99 | $29.85 |
| 25+ | $1.94 | $48.50 |
| 50+ | $1.84 | $92.00 |
| 100+ | $1.62 | $162.00 |
| N+ | $0.32 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32G0 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core |
| Speed | 64MHz |
| Connectivity | HDMI-CEC, I2C, IrDA, LINbus, SPI, UART/USART, USB Type-C™ (Power Delivery) |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 60 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 36K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 19x12b; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

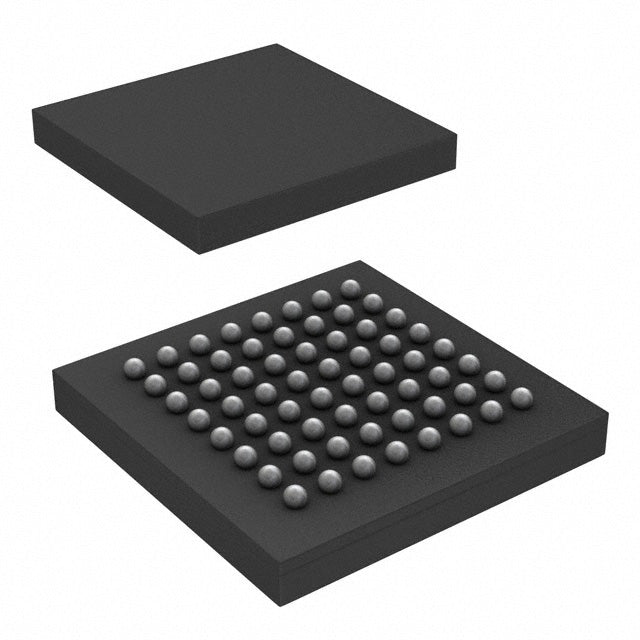

| Supplier Device Package | 64-UFBGA (5x5) |
| Package / Case | 64-UFBGA |
| ROHS |  |
The STM32G081RBI6 is a 32-bit ARM Cortex-M0+ MCU from STMicroelectronics, running at 64MHz with 128KB flash and 36KB RAM. It operates from 1.7V to 3.6V and includes DMA, I2S, PWM, and comprehensive reset features. The 64-UFBGA package is ideal for space-constrained, high-performance applications.
- Large memory: 128KB flash and 36KB RAM for complex firmware.
- High-speed core: 64MHz Cortex-M0+ for real-time processing.
- Compact package: 64-UFBGA reduces board area by 40% vs LQFP.
- Advanced peripherals: I2S and DMA enable high-fidelity audio and data streaming.
Industrial Drives
64MHz speed and 36KB RAM handle complex FOC algorithms for motor control.
Smart Meters
128KB flash stores extensive calibration data and communication stacks.
Medical Monitoring
DMA and I2S support high-resolution ADC sampling for patient vitals.
Robotics Controllers
Multiple PWM channels and 64MHz core manage servo and stepper motors.
Power Tools
1.7V operation enables single-cell Li-ion battery designs with BMS integration.
Building Automation
64-UFBGA package fits compact HVAC controllers with rich I/O.
- Q: What core does it use?
- A: ARM Cortex-M0+ at 64MHz.
- Q: What is the memory capacity?
- A: 128KB flash and 36KB RAM.
- Q: What voltage range is supported?
- A: 1.7V to 3.6V.
- Q: What package is available?
- A: 64-UFBGA, ultra-fine pitch for compact designs.
Base Product Number ：
STM32G081RB
STM32G081RBI6.pdf
