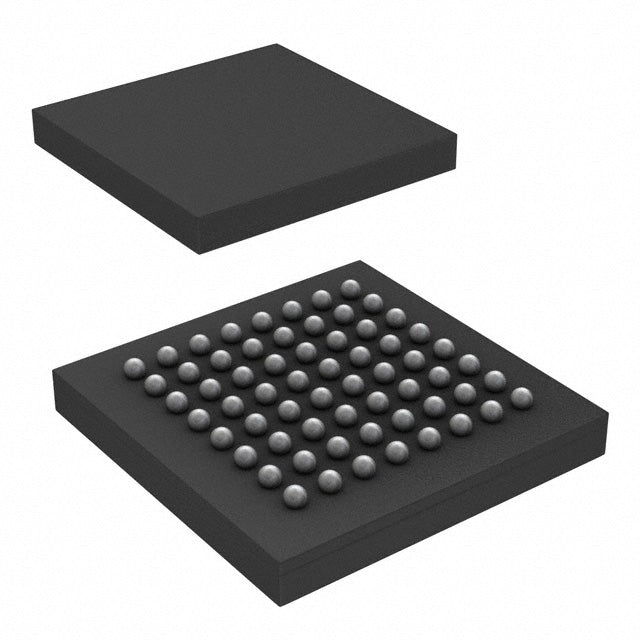

STMicroelectronics STM32G431RBI6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.92 | $7.92 |
| 15+ | $5.21 | $78.15 |
| 25+ | $5.09 | $127.25 |
| 50+ | $4.81 | $240.50 |
| 100+ | $4.25 | $425.00 |
| N+ | $0.85 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32G4 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core |
| Speed | 170MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 52 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 23x12b; D/A 4x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-UFBGA (5x5) |
| Package / Case | 64-UFBGA |
| ROHS |  |
The STMicroelectronics STM32G431RBI6 is a high-performance ARM Cortex-M4F microcontroller in a 64-UFBGA package. It runs at 170MHz and features 128KB flash and 32K x 8 RAM. The device operates from 1.71V to 3.6V and includes advanced timers, DMA, and I2S peripherals. It is designed for digital power, motor control, and industrial applications, offering a balance of performance and efficiency. The operating temperature range is -40°C to 85°C.
- High Performance: 170MHz Cortex-M4F with FPU accelerates complex calculations.
- Low Voltage Operation: 1.71V minimum supports battery-powered designs.
- Advanced Timers: Ideal for precise PWM generation in motor control.
- Compact Package: 64-UFBGA saves PCB space for miniaturized products.
Digital Power Control
The 170MHz Cortex-M4F with FPU enables high-frequency digital loop control for switch-mode power supplies.
Motor Control
Advanced timers with dead-time generation and complementary outputs support FOC for BLDC and PMSM motors.
Industrial Sensors
With DMA and fast ADC, it can process multiple sensor inputs for predictive maintenance systems.
Consumer Electronics
Its low power consumption and compact UFBGA package make it suitable for portable devices and smart home controllers.
Battery Management
The precise ADC and low-voltage operation enable accurate monitoring and balancing in BMS applications.
IoT Edge Nodes
With rich connectivity options and efficient processing, it can handle edge computing tasks in IoT devices.
- Q: What is the core processor used?
- A: It uses an ARM Cortex-M4F core with FPU, running at 170MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V, supporting low-power applications.
- Q: What is the package type?
- A: It is available in a 64-UFBGA package, ideal for compact designs.
- Q: Does it have motor control features?
- A: Yes, it includes advanced PWM timers suitable for motor control applications.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 85°C (TA).
