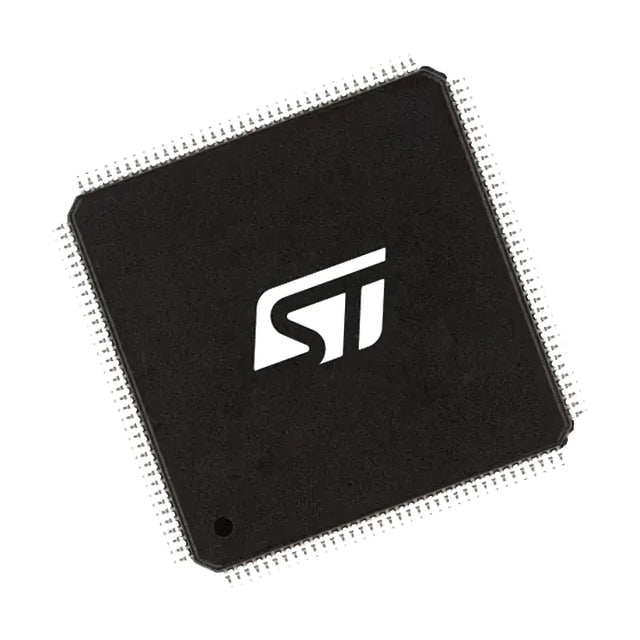

STMicroelectronics STM32H523ZET6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.84 | $9.84 |
| 15+ | $6.47 | $97.05 |
| 25+ | $6.33 | $158.25 |
| 50+ | $5.98 | $299.00 |
| 100+ | $5.27 | $527.00 |
| N+ | $1.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H5 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 250MHz |
| Connectivity | CANbus, FIFO, I2C, IrDA, LINbus, MMC/SD/SDIO, SMBus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 112 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 272K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 20x10b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LQFP (20x20) |
| Package / Case | 144-LQFP |
| ROHS |  |
The STM32H523ZET6 is a high-performance 32-bit MCU from STMicroelectronics, based on the ARM Cortex-M33 core at 250MHz. It offers 512KB flash and 272KB RAM, with a supply range of 1.71V to 3.6V. Packaged in a 144-LQFP, it is designed for advanced industrial, audio, and IoT applications requiring high compute density.
- 250MHz Cortex-M33: Delivers exceptional compute performance for complex applications.
- Large 272KB RAM: Supports data-intensive processing and multitasking.
- Wide voltage range (1.71V-3.6V): Enables low-power and battery-operated designs.
- Rich peripheral set (I2S, PWM, DMA): Facilitates versatile system integration.
Industrial IoT Gateways
250MHz Cortex-M33 with 272KB RAM handles protocol stacks and edge AI inference for predictive maintenance.
Audio Processing
I2S interface and high-speed core support multi-channel audio effects in professional mixers.
Motor Control
Advanced PWM timers and 250MHz processing enable high-bandwidth current loops in servo drives.
Smart Grid
Robust brown-out detection and wide voltage range ensure reliable operation in power monitoring equipment.
Medical Imaging
High RAM capacity and DSP instructions accelerate ultrasound beamforming algorithms.
Robotics
Multiple communication peripherals and fast interrupt handling coordinate sensors and actuators in collaborative robots.
- Q: What is the core processor?
- A: ARM Cortex-M33.
- Q: What is the maximum clock speed?
- A: 250MHz.
- Q: What is the supply voltage range?
- A: 1.71V to 3.6V.
- Q: How much flash memory does it have?
- A: 512KB.
- Q: What package is available?
- A: 144-LQFP.
