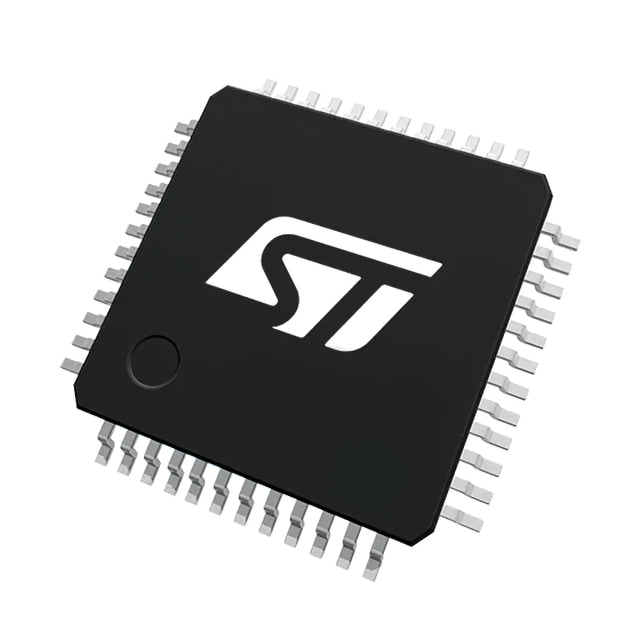

STMicroelectronics STM32H533CET6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.62 | $7.62 |
| 15+ | $5.00 | $75.00 |
| 25+ | $4.90 | $122.50 |
| 50+ | $4.62 | $231.00 |
| 100+ | $4.08 | $408.00 |
| N+ | $0.82 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H5 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 250MHz |
| Connectivity | CANbus, FIFO, I2C, IrDA, LINbus, SMBus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 35 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 272K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 10x10b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-LQFP (7x7) |
| Package / Case | 48-LQFP |
| ROHS |  |
The STMicroelectronics STM32H533CET6 is a high-performance microcontroller featuring an ARM Cortex-M33 core at 250MHz. It offers 512KB flash and 272KB RAM in a 48-LQFP package. With a supply range of 1.71V to 3.6V and operating temperature up to 85°C, it is designed for advanced industrial, audio, and IoT applications. Integrated DMA, I2S, PWM, and WDT provide comprehensive peripheral support.
- 250MHz performance: Handles complex algorithms and real-time tasks.
- Large 272KB RAM: Enables rich data buffering and multitasking.
- Advanced DMA: Offloads CPU for efficient data transfer.
- Compact 48-LQFP: High density in small form factor.
High-End Audio Processing
250MHz Cortex-M33 with I2S and DMA enables real-time audio effects and voice recognition in smart speakers.
Industrial Automation Controllers
Large 272KB RAM supports complex PLC logic and HMI graphics on 48-pin footprint.
Medical Wearable Devices
Low-voltage operation (1.71V) and DMA reduce power for continuous health monitoring.
Robotics and Motion Control
High-speed PWM and 250MHz processing handle multi-axis servo algorithms with precision.
Smart Grid and Energy Meters
512KB flash stores extensive calibration data and communication stacks for smart metering.
Edge AI Inference
Cortex-M33 with DSP instructions accelerates neural network inference for anomaly detection.
- Q: What is the maximum clock speed?
- A: 250MHz with ARM Cortex-M33 core.
- Q: How much flash and RAM?
- A: 512KB flash and 272KB RAM.
- Q: What is the package?
- A: 48-pin LQFP.
- Q: What voltage range is supported?
- A: 1.71V to 3.6V.
