STMicroelectronics STM32H562RGV6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.32 | $7.32 |
| 15+ | $4.81 | $72.15 |
| 25+ | $4.71 | $117.75 |
| 50+ | $4.45 | $222.50 |
| 100+ | $3.92 | $392.00 |
| N+ | $0.78 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H5 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 250MHz |
| Connectivity | CANbus, FIFO, I2C, IrDA, LINbus, SCI, SDIO, SMBus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, PDR, POR, PWM, SHA, TRNG, Voltage Detect, WDT |
| Number of I/O | 53 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 640K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 16x12b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

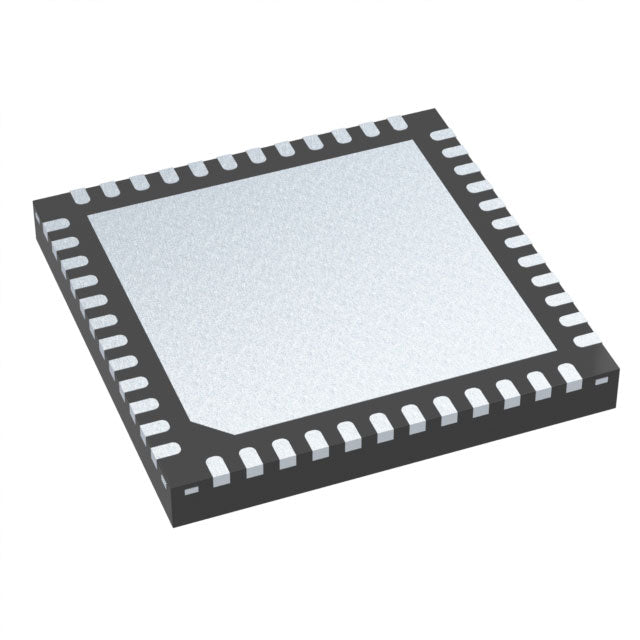

| Supplier Device Package | 68-VFQFPN (8x8) |
| Package / Case | 68-VFQFN Exposed Pad |
| ROHS |  |
The STM32H562RGV6 is a high-performance ARM Cortex-M33 microcontroller from STMicroelectronics, running at 250MHz. It features 1MB flash and 640KB RAM, with advanced security including SHA, TRNG, and tamper detection. Housed in a 68-VFQFN package, it operates from 1.71V to 3.6V and includes DMA, I2S, PWM, and multiple reset/watchdog functions, targeting industrial, IoT, and consumer applications.
- 250MHz Cortex-M33: High compute throughput for DSP and control algorithms.
- 1MB flash / 640KB RAM: Large memory for complex applications and data buffering.
- Hardware security (SHA, TRNG): Enables secure boot and encrypted communications.
- Wide supply range (1.71-3.6V): Flexible power design with battery or regulated supplies.
Industrial IoT Gateways
250MHz Cortex-M33 with TrustZone enables secure cloud connectivity and edge processing.
Smart Metering
High-speed ADC and DMA handle waveform sampling for power quality analysis.
Medical Monitoring Devices
TRNG and SHA support secure patient data encryption; low-power modes extend battery life.
Robotics Controllers
Multiple timers and PWM channels coordinate servo and motor control with precise timing.
Audio Processing
I2S interface and 640KB RAM buffer high-fidelity audio streams for voice assistants.
Automotive HMI
Rich graphics support via external memory interface; robust brown-out detection ensures reliable operation.
- Q: What is the maximum clock speed?
- A: 250MHz.
- Q: How much flash and RAM?
- A: 1MB flash and 640KB RAM.
- Q: What security features are included?
- A: SHA, TRNG, and tamper detection.
- Q: What package is this?
- A: 68-VFQFN exposed pad.
STM32H562RGV6.pdf
- Q: What is the maximum clock speed?
- A: 250MHz.
- Q: How much flash and RAM?
- A: 1MB flash and 640KB RAM.
- Q: What security features are included?
- A: SHA, TRNG, and tamper detection.
- Q: What package is this?
- A: 68-VFQFN exposed pad.
