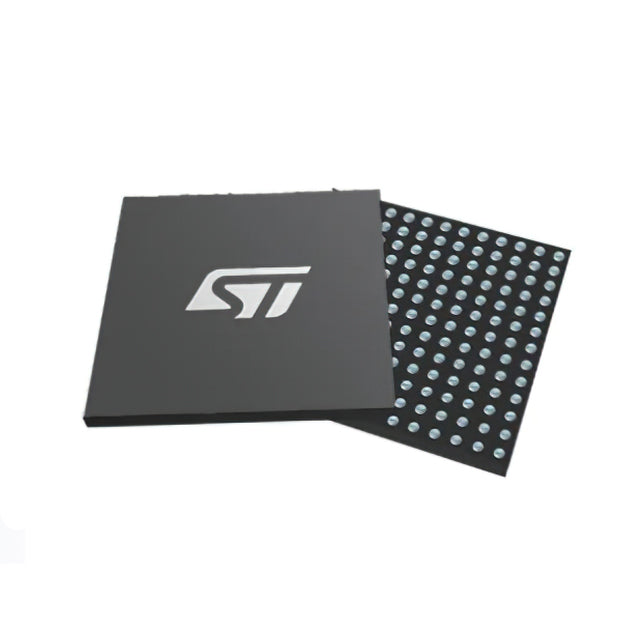

STMicroelectronics STM32H725AGI3TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $34.99 | $34.99 |
| 15+ | $8.05 | $120.75 |
| 25+ | $7.88 | $197.00 |
| 50+ | $7.44 | $372.00 |
| 100+ | $6.56 | $656.00 |
| N+ | $1.31 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H7 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit |
| Speed | 550MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 121 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 564K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 55x12/16b; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 169-UFBGA (7x7) |
| Package / Case | 169-UFBGA |
| ROHS |  |
The STMicroelectronics STM32H725AGI3TR is a high-performance 32-bit ARM Cortex-M7 microcontroller running at 550MHz. It features 1MB flash and 564KB SRAM, with a supply range of 1.62V to 3.6V. Integrated peripherals include LCD controller, I2S, DMA, PWM, and brown-out detection. The 169-UFBGA package supports advanced applications in industrial, automotive, and audio domains, operating from -40°C to 125°C.
- 550MHz Cortex-M7: Delivers exceptional compute performance for DSP and AI workloads.
- 564KB SRAM: Enables large data buffers and complex real-time processing without external memory.
- Wide temperature range (-40°C to 125°C): Suitable for automotive and high-reliability industrial use.
- Rich multimedia peripherals: LCD, I2S, and DMA support advanced user interfaces and audio.
High-End Audio Processors
The 550MHz Cortex-M7 with I2S and large SRAM enables real-time audio effects and multi-channel processing in professional mixers.
Machine Vision Cameras
1MB flash and 564KB RAM buffer high-resolution image data, while DMA accelerates pixel transfer to external displays.
Industrial HMI with Graphics
LCD controller and high clock speed render smooth animations on TFT panels for factory automation interfaces.
Automotive Telematics
125°C rating and robust peripherals support engine control units and telematics boxes in harsh under-hood environments.
Edge AI Inference
The Cortex-M7 with DSP instructions executes small neural networks for predictive maintenance and anomaly detection.
Robotic Controllers
Multiple PWM channels and high-speed ADC handle servo loops and sensor fusion for collaborative robots.
- Q: What is the maximum CPU speed of STM32H725AGI3TR?
- A: It runs at 550MHz on an ARM Cortex-M7 core.
- Q: How much flash and RAM does it have?
- A: It has 1MB flash and 564KB SRAM.
- Q: What is the supply voltage range?
- A: It operates from 1.62V to 3.6V.
- Q: What package is available?
- A: It comes in a 169-pin UFBGA package.
- Q: What is the operating temperature range?
- A: It supports -40°C to 125°C.
