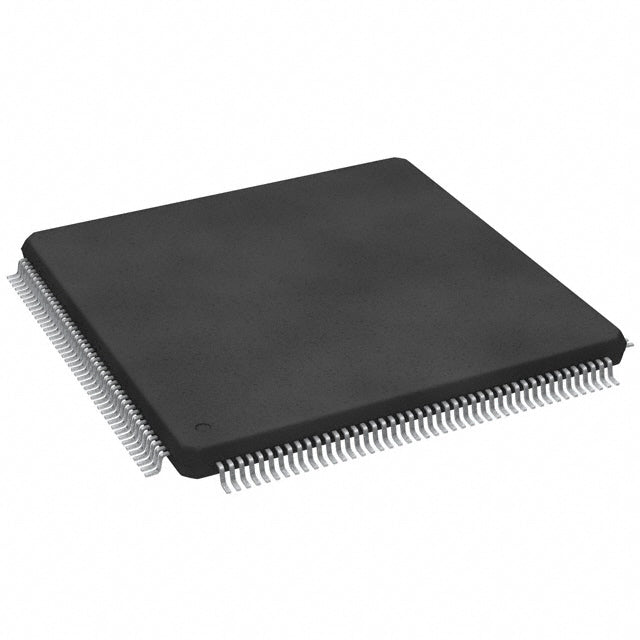

STMicroelectronics STM32H730IBT6Q
Regular price
$14.46
Regular price
$10.33
Sale price
$14.46
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.46 | $14.46 |
| 15+ | $9.50 | $142.50 |
| 25+ | $9.30 | $232.50 |
| 50+ | $8.78 | $439.00 |
| 100+ | $7.75 | $775.00 |
| N+ | $1.55 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H7 |
| Packaging | Bulk | |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit |
| Speed | 550MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 119 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 564K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 12x12b, 30x16b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Package / Case | 176-LQFP |
| ROHS |  |
The STM32H730IBT6Q from STMicroelectronics is a high-performance MCU featuring an ARM Cortex-M7 core at 550MHz. It provides 128KB flash and 564KB RAM, with a wide supply range of 1.62V to 3.6V. The 176-LQFP package and rich peripheral set (DMA, I2S, LCD, PWM) make it suitable for advanced embedded applications.
- Extreme speed: 550MHz Cortex-M7 for compute-intensive tasks.
- Rich connectivity: I2S, LCD, and multiple timers.
- Flexible power: 1.62V–3.6V supports low-power designs.
- Large RAM: 564KB for buffering and complex algorithms.
AI Edge Inference
550MHz Cortex-M7 with 564KB RAM runs lightweight neural networks for predictive maintenance.
High-End Audio
I2S and LCD support professional audio processors and user interfaces.
Industrial HMI
LCD controller and fast DMA enable rich graphical displays.
Motor Control
High-speed PWM and ADC for servo drives requiring precise timing.
Medical Imaging
High clock speed processes ultrasound or OCT data in real time.
Networking Gateways
Robust peripherals handle protocol conversion in industrial IoT.
- Q: What is the core and speed?
- A: ARM Cortex-M7 at 550MHz.
- Q: What is the supply voltage range?
- A: 1.62V to 3.6V.
- Q: How much flash and RAM?
- A: 128KB flash and 564KB RAM.
- Q: What package is it?
- A: 176-LQFP.
Base Product Number ：
STM32H730IBT6Q
