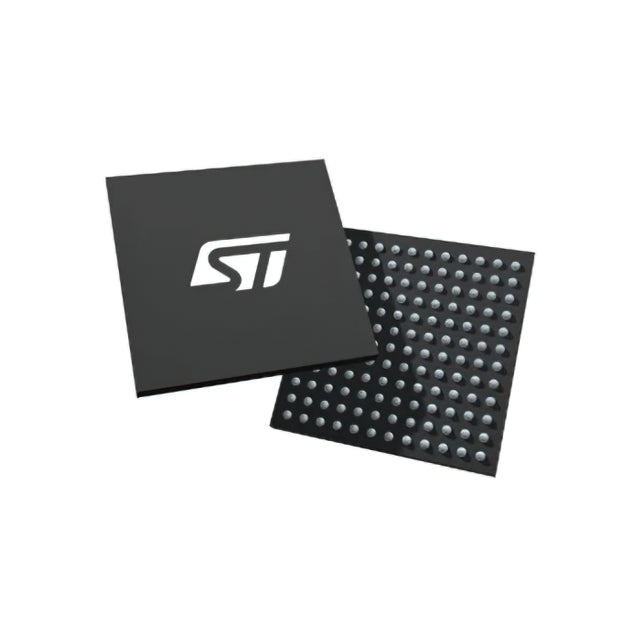

STMicroelectronics STM32H730ZBI6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.99 | $14.99 |
| 15+ | $9.85 | $147.75 |
| 25+ | $9.64 | $241.00 |
| 50+ | $9.10 | $455.00 |
| 100+ | $8.03 | $803.00 |
| N+ | $1.61 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H7 |
| Packaging | Bulk | |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit |
| Speed | 550MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 144 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 564K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 17x12b, 34x16b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-UFBGA (7x7) |
| Package / Case | 144-UFBGA |
| ROHS |  |
The STMicroelectronics STM32H730ZBI6 is a high-performance MCU featuring an ARM Cortex-M7 core at 550MHz. It offers 128KB flash and 564KB RAM, balancing code storage and data handling. The 144-UFBGA package provides ample I/O for complex designs. With a supply range of 1.62V-3.6V and -40°C to 85°C operation, it suits advanced industrial and consumer applications.
- Extreme Performance: 550MHz Cortex-M7 delivers near-DSP level processing for real-time control.
- Large RAM: 564KB enables complex data structures and graphics frame buffers.
- Rich Connectivity: Includes LCD, I2S, DMA, and PWM for versatile system integration.
- Low Voltage Operation: 1.62V support allows battery-powered designs.
High-End Audio Interfaces
The 550MHz core and I2S support multi-channel high-resolution audio processing for studio equipment.
Advanced Motor Control
Multiple PWM timers and DMA enable field-oriented control of servo motors with high precision.
Machine Vision Cameras
High-speed processing and LCD interface support real-time image capture and display for inspection systems.
Industrial Robotics
Rich peripherals and 564KB RAM handle complex kinematics and safety monitoring in robotic arms.
Smart Displays
The LCD controller and high clock speed enable smooth GUI rendering on TFT panels.
Power Conversion
Fast ADC and PWM capabilities support digital power supplies with high switching frequencies.
- Q: What is the maximum clock speed?
- A: The ARM Cortex-M7 core runs at 550MHz, offering high computational performance.
- Q: What is the supply voltage range?
- A: It operates from 1.62V to 3.6V, supporting low-power and standard logic levels.
- Q: How much RAM is available?
- A: It has 564KB of RAM, suitable for large data buffers and graphics.
- Q: What package is used?
- A: It is available in a 144-UFBGA package.
STM32H730ZBI6.pdf
- Q: What is the maximum clock speed?
- A: The ARM Cortex-M7 core runs at 550MHz, offering high computational performance.
- Q: What is the supply voltage range?
- A: It operates from 1.62V to 3.6V, supporting low-power and standard logic levels.
- Q: How much RAM is available?
- A: It has 564KB of RAM, suitable for large data buffers and graphics.
- Q: What package is used?
- A: It is available in a 144-UFBGA package.
