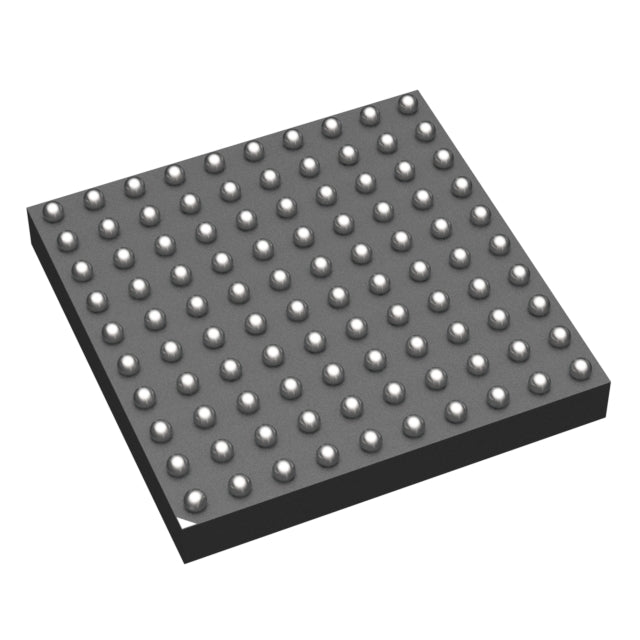

STMicroelectronics STM32H742VIH6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.71 | $17.71 |
| 15+ | $11.64 | $174.60 |
| 25+ | $11.39 | $284.75 |
| 50+ | $10.75 | $537.50 |
| 100+ | $9.49 | $949.00 |
| N+ | $1.90 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H7 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core |
| Speed | 480MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 82 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 692K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 36x16b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-TFBGA (8x8) |
| Package / Case | 100-TFBGA |
| ROHS |  |
The STM32H742VIH6 is a high-performance 32-bit microcontroller from STMicroelectronics, based on the ARM Cortex-M7 core at 480MHz. It offers 2MB of flash memory and 692KB of SRAM, operating from 1.62V to 3.6V. The device includes a rich peripheral set: brown-out detector, DMA, I2S, LCD controller, POR, PWM, and WDT. Housed in a 100-TFBGA package, it is designed for high-end industrial, medical, and consumer applications.
- Ultra-high performance: 480MHz Cortex-M7 core for demanding tasks.
- Large memory: 2MB flash and 692KB RAM for complex applications.
- Integrated LCD-TFT controller: Enables direct display driving.
- Low-voltage operation: Supports 1.62V for energy-efficient designs.
High-End Audio Processors
The 480MHz Cortex-M7 core and I2S interface enable high-fidelity audio processing. The large RAM buffers audio streams.
Industrial Vision Systems
The LCD controller and high-speed core handle real-time image processing. The 100-TFBGA package offers compact routing.
Advanced Motor Control
Multiple PWM timers and DMA support complex multi-motor control. The 1.62V low-voltage option reduces power consumption.
Medical Imaging Devices
High processing power enables real-time signal processing. The WDT and brown-out reset ensure patient safety.
Smart Displays
The integrated LCD controller drives TFT panels directly. The 2MB flash stores UI assets and fonts.
- Q: What is the maximum clock speed?
- A: The ARM Cortex-M7 core runs at up to 480MHz.
- Q: How much RAM is available?
- A: It has 692KB of SRAM.
- Q: What is the supply voltage range?
- A: It operates from 1.62V to 3.6V.
- Q: Does it support LCD?
- A: Yes, it includes an LCD-TFT controller.
