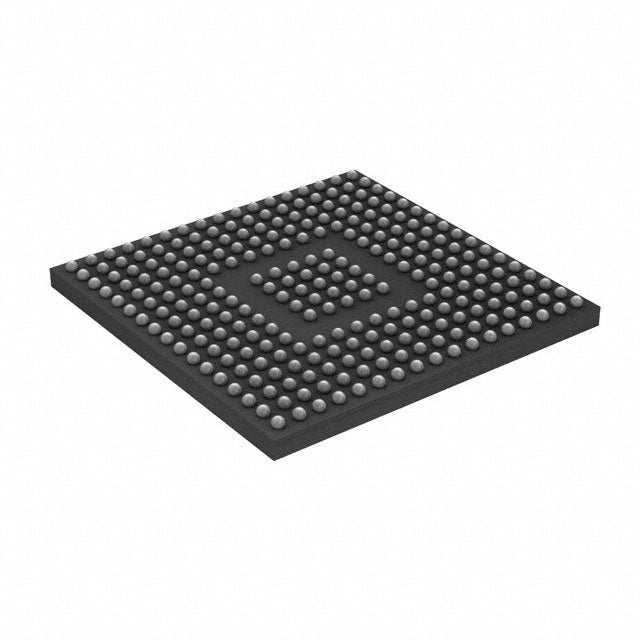

STMicroelectronics STM32H742XGH6
Regular price
$48.48
Regular price
$12.12
Sale price
$48.48
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $48.48 | $48.48 |
| 15+ | $11.15 | $167.25 |
| 25+ | $10.91 | $272.75 |
| 50+ | $10.30 | $515.00 |
| 100+ | $9.09 | $909.00 |
| N+ | $1.82 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H7 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core |
| Speed | 480MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 168 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 688K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 36x16b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 240+25-TFBGA (14x14) |
| Package / Case | 265-TFBGA |
| ROHS |  |
The STM32H742 is a flagship MCU from STMicroelectronics, featuring a 480MHz ARM Cortex-M7 core. It provides 1MB flash and 688KB RAM, making it one of the most powerful MCUs available. The 265-TFBGA package is ideal for compact, high-density designs.
- Ultra-fast 480MHz Cortex-M7: Exceptional processing capability.
- Large 688KB RAM: Supports complex real-time applications.
- Integrated LCD controller: Enables direct display interfacing.
- Wide voltage range (1.62V-3.6V): Flexible power design.
AI Edge Computing
480MHz Cortex-M7 with 688KB RAM runs lightweight neural networks.
High-End Audio
I2S and high-speed processing support multi-channel audio effects.
Industrial Displays
LCD controller and fast graphics rendering enable rich HMIs.
Motor Control
Advanced PWM timers and ADC provide precise three-phase control.
Medical Wearables
Low voltage operation and high performance suit portable devices.
Robotics
Real-time control and sensor fusion benefit from high clock speed.
- Q: What is the maximum CPU frequency?
- A: 480MHz.
- Q: What is the core type?
- A: ARM Cortex-M7.
- Q: How much RAM is available?
- A: 688KB.
- Q: What package is used?
- A: 265-TFBGA.
Base Product Number ：
STM32H742XGH6
STM32H742XGH6.pdf
