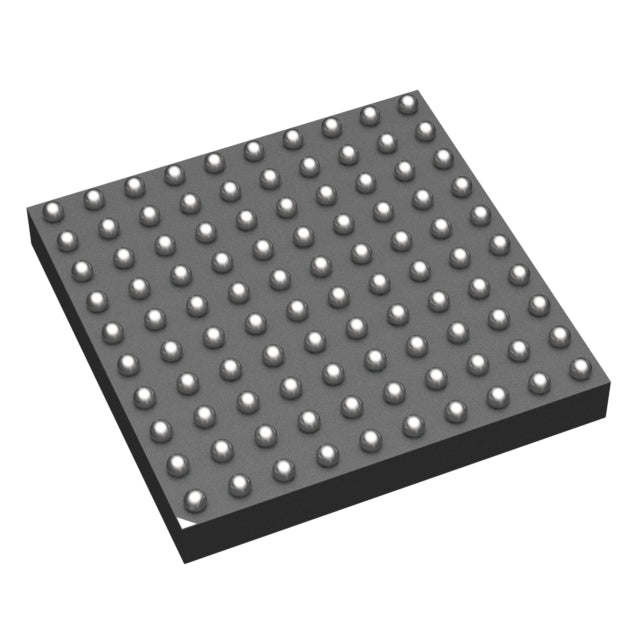

STMicroelectronics STM32H743VGH6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.00 | $17.00 |
| 15+ | $11.17 | $167.55 |
| 25+ | $10.93 | $273.25 |
| 50+ | $10.32 | $516.00 |
| 100+ | $9.11 | $911.00 |
| N+ | $1.82 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H7 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core |
| Speed | 480MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 82 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 36x16b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-TFBGA (8x8) |
| Package / Case | 100-TFBGA |
| ROHS |  |
The STMicroelectronics STM32H743VGH6 is a high-performance 32-bit MCU built on the ARM Cortex-M7 core at 480MHz. It features 1MB flash and 1MB RAM, with a supply range of 1.71V to 3.6V. The 100-TFBGA package and rich peripheral set (DMA, I2S, LCD, PWM) make it ideal for advanced embedded applications.
- Exceptional Processing Power: 480MHz Cortex-M7 with double-precision FPU handles complex algorithms with ease.
- Massive RAM: 1MB of RAM allows for large data buffers and complex real-time processing without external memory.
- Rich Multimedia Interfaces: Integrated LCD controller and I2S support graphical and audio applications directly.
- Low Voltage Operation: 1.71V minimum supply enables battery-powered designs.
High-End Audio Processing
The 480MHz Cortex-M7 with DSP instructions and 1MB RAM enables real-time audio effects processing, multi-channel equalization, and high-resolution audio decoding.
Machine Vision Systems
With its high clock speed and integrated LCD controller, it can handle image capture, preprocessing, and display for industrial inspection cameras.
Artificial Intelligence at the Edge
The powerful core and large RAM support running lightweight neural networks for predictive maintenance and anomaly detection in IoT devices.
Advanced Motor Control
Its speed allows for very high-frequency PWM and fast current loops, enabling ultra-smooth control of multi-axis servo systems in CNC machines.
Medical Wearable Devices
The low voltage operation (1.71V) and processing power support complex biosignal processing (ECG, EEG) in battery-powered wearables.
Telecommunications Infrastructure
It can manage protocol stacks and packet processing in small-cell base stations and network switches, with DMA offloading data movement.
- Q: What is the maximum clock speed of the STM32H743VGH6?
- A: It runs at up to 480MHz, making it one of the fastest MCUs in its class.
- Q: What core does it use?
- A: It is based on the ARM Cortex-M7 core with double-precision FPU.
- Q: How much memory does it have?
- A: It has 1MB of flash and 1MB of RAM.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V.
- Q: What package is it available in?
- A: It comes in a 100-TFBGA package.
