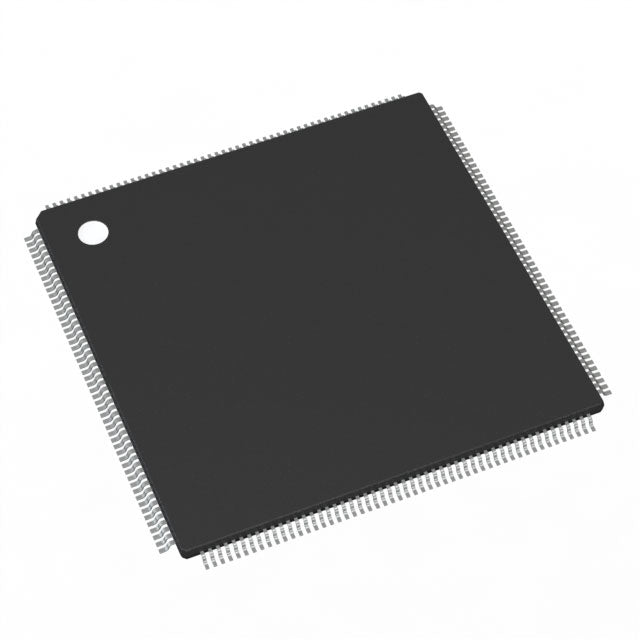

STMicroelectronics STM32H747BGT6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $21.57 | $21.57 |
| 15+ | $14.18 | $212.70 |
| 25+ | $13.87 | $346.75 |
| 50+ | $13.10 | $655.00 |
| 100+ | $11.56 | $1,156.00 |
| N+ | $2.31 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H7 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M4/M7 |
| Core Size | 32-Bit Dual-Core |
| Speed | 240MHz, 480MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 148 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 32x16b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 208-LQFP (28x28) |
| Package / Case | 208-LQFP |
| ROHS |  |
The STM32H747BGT6 is a high-performance dual-core microcontroller from STMicroelectronics, combining an ARM Cortex-M7 running at 480 MHz with a Cortex-M4 at 240 MHz. It offers 1MB of flash and 1MB of SRAM, along with a rich set of peripherals including LCD, I2S, and advanced PWM. Housed in a 208-LQFP package, it operates across a wide voltage range, making it suitable for complex embedded applications.
- Dual-core processing power: The 480 MHz M7 and 240 MHz M4 allow for parallel task execution, boosting system throughput.
- Extensive memory: 1MB flash and 1MB SRAM support complex applications without external memory.
- Rich peripheral set: Includes LCD, I2S, and multiple timers, reducing the need for external components.
- Wide voltage range: Operates from 1.62V to 3.6V, offering flexibility in power supply design.
Industrial HMI Panels
With the dual-core architecture and LCD controller, the STM32H747BGT6 can handle complex graphical interfaces and real-time control simultaneously, ideal for high-end industrial panels.
Audio Processing Systems
The integrated I2S and high-speed Cortex-M7 core enable high-fidelity audio processing for professional mixers and effects units.
Motor Control Drives
Multiple PWM timers and a 480 MHz core allow for precise, high-frequency motor control loops in robotics and CNC machinery.
Smart Home Gateways
Its rich connectivity and DMA controllers make it a strong hub for aggregating sensor data and managing smart home protocols.
Medical Monitoring Devices
The low-voltage operation and robust set of peripherals support portable, battery-powered patient monitors requiring fast data acquisition.
Vision Systems
Combined with external cameras, the high-speed core and large RAM buffer enable real-time image preprocessing for inspection systems.
- Q: What is the maximum clock speed of the STM32H747BGT6?
- A: The dual-core STM32H747BGT6 runs at 480 MHz on the Cortex-M7 and 240 MHz on the Cortex-M4.
- Q: What is the operating voltage range?
- A: It operates from 1.62V to 3.6V, supporting low-power and battery applications.
- Q: How much flash and RAM does it have?
- A: It provides 1MB of flash memory and 1MB of SRAM.
- Q: What package is available?
- A: It comes in a 208-pin LQFP package.
- Q: Does it support graphical displays?
- A: Yes, it includes an LCD interface and advanced graphics features.
