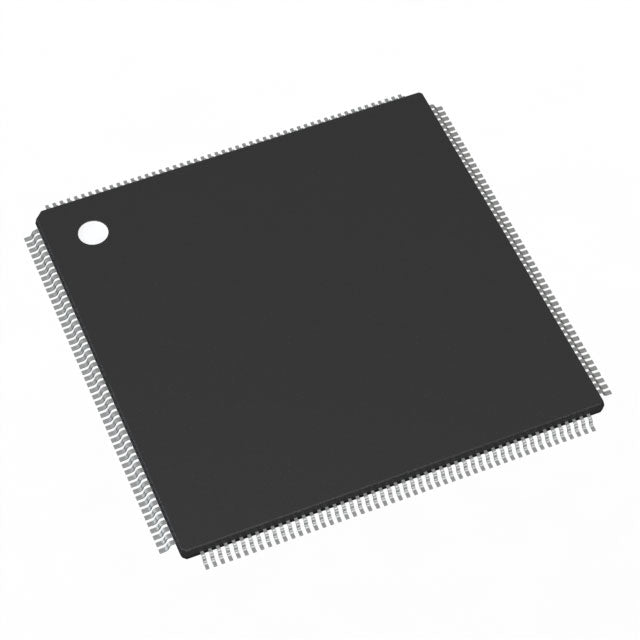

STMicroelectronics STM32H747BIT6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $28.46 | $28.46 |
| 15+ | $18.70 | $280.50 |
| 25+ | $18.30 | $457.50 |
| 50+ | $17.28 | $864.00 |
| 100+ | $15.25 | $1,525.00 |
| N+ | $3.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H7 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M4/M7 |
| Core Size | 32-Bit Dual-Core |
| Speed | 240MHz, 480MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 168 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 32x16b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 208-LQFP (28x28) |
| Package / Case | 208-LQFP |
| ROHS |  |
The STM32H747BIT6 is a high-performance dual-core microcontroller from STMicroelectronics, combining an ARM Cortex-M7 running at 480 MHz and a Cortex-M4 at 240 MHz. It offers 2MB of flash and 1MB of RAM, enabling complex applications. With a rich set of peripherals including LCD, I2S, DMA, and PWM, it is ideal for advanced industrial, audio, and vision systems. The 208-LQFP package and wide voltage range support versatile embedded designs.
- Dual-core performance: 480 MHz M7 + 240 MHz M4 enables parallel processing of UI and control tasks.
- Large memory: 2MB flash and 1MB RAM support complex code and data buffering.
- Rich multimedia: Integrated LCD controller and I2S simplify display and audio integration.
- Wide voltage range: 1.62V to 3.6V allows flexible power supply design.
- Extended temperature: -40°C to 85°C ensures reliability in harsh environments.
Industrial HMI and GUI
With dual-core processing (480 MHz M7 + 240 MHz M4) and an LCD controller, the STM32H747BIT6 can run complex graphical interfaces while handling real-time control tasks simultaneously.
Audio Processing and DSP
The Cortex-M7 core with double-precision FPU and large 1MB RAM enables high-fidelity audio effects, voice recognition, and real-time DSP algorithms.
Motor Control and Drives
Advanced timers with PWM generation, combined with fast ADC and DMA, allow precise field-oriented control (FOC) for multi-axis servo and BLDC motors.
Edge AI and Vision
The high-speed M7 core and 2MB flash support lightweight neural network inference for image classification and object detection in smart cameras.
Connected IoT Gateways
With multiple communication interfaces (Ethernet, USB, CAN) and low-power modes, it serves as a central hub aggregating sensor data and managing protocols.
Medical Monitoring Devices
The wide voltage range and reliable operation from -40°C to 85°C make it suitable for portable patient monitors and diagnostic equipment requiring high computational throughput.
- Q: What is the maximum clock speed of the STM32H747BIT6?
- A: The dual-core STM32H747BIT6 runs at 480 MHz on the Cortex-M7 and 240 MHz on the Cortex-M4.
- Q: What is the operating voltage range?
- A: It operates from 1.62V to 3.6V, supporting flexible power designs.
- Q: How much flash and RAM does it have?
- A: It includes 2MB of flash and 1MB of RAM.
- Q: What package is available?
- A: It comes in a 208-pin LQFP package.
- Q: Does it support LCD and graphics?
- A: Yes, it has an LCD interface and rich multimedia peripherals.
