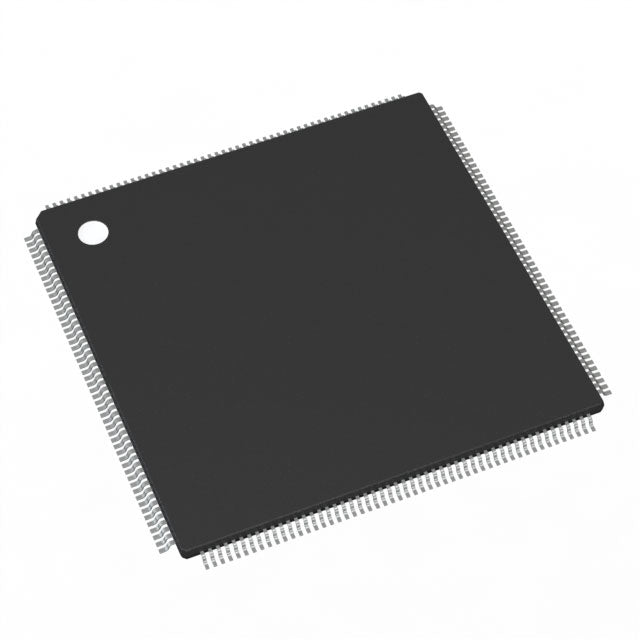

STMicroelectronics STM32H755BIT6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $29.58 | $29.58 |
| 15+ | $19.44 | $291.60 |
| 25+ | $19.02 | $475.50 |
| 50+ | $17.96 | $898.00 |
| 100+ | $15.85 | $1,585.00 |
| N+ | $3.17 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H7 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M4/M7 |
| Core Size | 32-Bit Dual-Core |
| Speed | 240MHz, 480MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 148 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 32x16b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 208-LQFP (28x28) |
| Package / Case | 208-LQFP |
| ROHS |  |
The STM32H755BIT6 is a dual-core microcontroller from STMicroelectronics, combining an ARM Cortex-M7 running at 480MHz and a Cortex-M4 at 240MHz. It offers 2MB of flash and 1MB of SRAM, along with advanced peripherals like LCD, I2S, and DMA. Housed in a 208-LQFP package, it operates from 1.62V to 3.6V, making it ideal for high-performance, feature-rich embedded systems.
- Dual-Core Performance: Cortex-M7 and M4 enable parallel task execution for complex applications.
- Large Memory Capacity: 2MB flash and 1MB SRAM support extensive code and data storage.
- Rich Peripheral Set: Includes LCD, I2S, and advanced PWM for versatile system integration.
- Flexible Power Options: Wide voltage range supports both low-power and high-performance modes.
High-End Audio Processing
The dual-core architecture with I2S and DMA supports multi-channel audio effects and high-fidelity streaming.
Industrial HMI and Graphics
The LCD controller and high-speed Cortex-M7 core enable smooth graphical interfaces on TFT displays.
Motor Control with Safety
PWM timers and the Cortex-M4 core can handle FOC algorithms while the M7 manages system monitoring.
Edge AI and Vision
With 1MB RAM and high clock speeds, it can run lightweight neural networks for predictive maintenance.
Medical Instrumentation
Brown-out detection and wide voltage range ensure reliable operation in portable diagnostic devices.
Networking Gateways
Multiple communication interfaces allow bridging between industrial protocols and Ethernet.
- Q: What are the core processors in the STM32H755BIT6?
- A: It features a dual-core ARM Cortex-M7 (480MHz) and Cortex-M4 (240MHz) for parallel processing.
- Q: How much memory is available?
- A: It includes 2MB of flash memory and 1MB of SRAM, enabling complex applications.
- Q: What is the supply voltage range?
- A: The operating range is 1.62V to 3.6V, suitable for low-power and standard 3.3V designs.
- Q: What package is used?
- A: It comes in a 208-LQFP package, offering good I/O availability for peripheral-rich systems.
