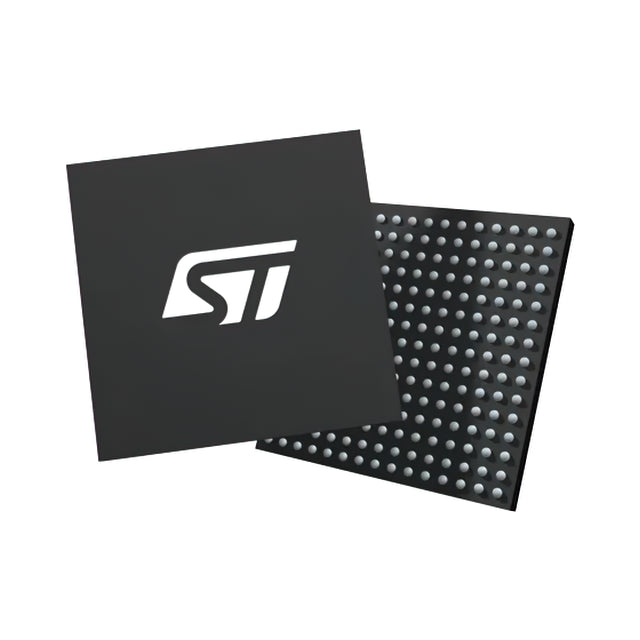

STMicroelectronics STM32H7R3L8H6H
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $15.29 | $15.29 |
| 15+ | $10.05 | $150.75 |
| 25+ | $9.83 | $245.75 |
| 50+ | $9.28 | $464.00 |
| 100+ | $8.19 | $819.00 |
| N+ | $1.64 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H7 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit |
| Speed | 600MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 150 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 616K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 20x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 225-TFBGA (13x13) |
| Package / Case | 225-TFBGA |
| ROHS |  |
The STM32H7R3L8H6H from STMicroelectronics is a high-performance microcontroller featuring an ARM Cortex-M7 core at 600MHz. It offers 64KB of flash memory and 616K x 8 of RAM, optimized for high-speed data processing. The device operates from 1.71V to 3.6V and supports temperatures from -40°C to 85°C. It includes features like DMA, I2S, PWM, and brown-out detection, all in a 225-TFBGA package, making it ideal for demanding applications.
- Ultra-High Performance: 600MHz Cortex-M7 core delivers exceptional processing power for complex tasks.
- Large RAM: 616K RAM supports large data buffers and complex applications.
- Advanced Peripherals: Includes I2S, DMA, and PWM for versatile connectivity and control.
- Wide Voltage Range: Operates from 1.71V to 3.6V, supporting various power supply designs.
- Compact Package: 225-TFBGA package saves board space in dense designs.
High-Performance Audio Processing
The 600MHz Cortex-M7 core and I2S interface enable real-time audio processing for professional audio equipment, including effects processors and mixing consoles.
Advanced Human-Machine Interfaces
With its high-speed processing and 616K RAM, this MCU can drive complex graphical user interfaces on TFT displays for industrial HMIs and consumer electronics.
Edge AI and Machine Learning
The powerful Cortex-M7 core can execute lightweight neural network models for edge AI applications like predictive maintenance and anomaly detection.
High-Speed Motor Control
The PWM and DMA features, combined with 600MHz processing, enable ultra-precise control of high-speed motors in drones and robotics.
Data Acquisition Systems
Its high-speed processing and large RAM support high-throughput data acquisition from multiple sensors in scientific and industrial instrumentation.
Networking and Communication
The processing power and I2S support make it suitable for network audio bridges and VoIP gateways that require low-latency data handling.
- Q: What is the core processor of the STM32H7R3L8H6H?
- A: It uses an ARM Cortex-M7 core running at 600MHz.
- Q: What is the supply voltage range?
- A: The device operates from 1.71V to 3.6V.
- Q: How much flash and RAM does it have?
- A: It has 64KB of flash memory and 616K x 8 of RAM.
- Q: What package is it available in?
- A: It comes in a 225-TFBGA package.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
