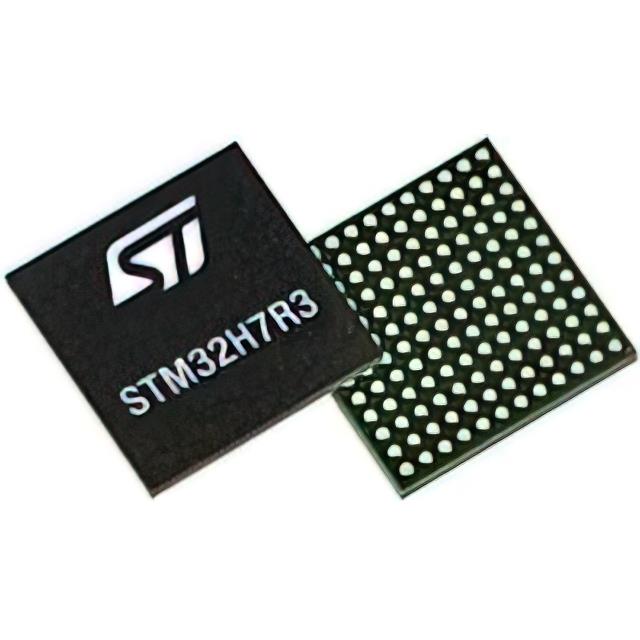

STMicroelectronics STM32H7R7L8H6H
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.66 | $16.66 |
| 15+ | $10.95 | $164.25 |
| 25+ | $10.71 | $267.75 |
| 50+ | $10.12 | $506.00 |
| 100+ | $8.93 | $893.00 |
| N+ | $1.79 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H7 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit |
| Speed | 600MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 150 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 616K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 20x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 225-TFBGA (13x13) |
| Package / Case | 225-TFBGA |
| ROHS |  |
The STM32H7R7L8H6H is a high-performance microcontroller from STMicroelectronics, built around a 600 MHz ARM Cortex-M7 core. It offers 64KB of program memory and a substantial 616KB of RAM, making it ideal for compute-intensive applications. The device includes a rich set of peripherals such as an LCD controller, I2S, DMA, and multiple timers with PWM. It operates within a flexible 1.71V to 3.6V supply range and is housed in a compact 225-TFBGA package, suitable for advanced embedded systems.
- Exceptional Processing Power: The 600 MHz Cortex-M7 core delivers industry-leading performance for demanding real-time and DSP applications.
- Large RAM Capacity: With 616KB of RAM, it can handle complex data buffers and multitasking without external memory.
- Integrated Display Support: The built-in LCD controller simplifies the design of graphical user interfaces, reducing BOM cost.
- Comprehensive Peripheral Set: Includes DMA, I2S, PWM, and watchdog timers, providing flexibility for diverse system requirements.
High-Performance Industrial Control
The 600 MHz Cortex-M7 core provides the computational headroom for complex real-time control algorithms, such as multi-axis servo control and advanced motor drives, with minimal latency.
Advanced Human-Machine Interfaces (HMI)
With an integrated LCD controller and rich graphics support, this MCU enables vibrant, high-resolution displays for industrial panels, medical devices, and smart home hubs.
Real-Time Audio Processing
The I2S interface and high-speed core allow for multi-channel audio streaming and DSP tasks like noise cancellation or voice recognition in smart speakers and professional audio equipment.
Edge AI and Predictive Maintenance
Its high clock speed and large 616KB RAM support running lightweight neural networks for anomaly detection on vibration or current data, enabling predictive maintenance in factory automation.
High-Speed Data Acquisition
The combination of DMA and fast processing enables high-throughput sampling from multiple ADCs, making it suitable for high-resolution power quality analyzers and medical imaging front-ends.
Secure IoT Gateways
With robust processing power and a wide voltage range, it can handle protocol stacks for Ethernet, USB, and wireless modules, serving as a central hub in smart building and industrial IoT networks.
- Q: What is the maximum operating frequency of the STM32H7R7L8H6H?
- A: The ARM Cortex-M7 core runs at up to 600 MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V.
- Q: Does it include an LCD controller?
- A: Yes, it features an integrated LCD interface.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 85°C.
