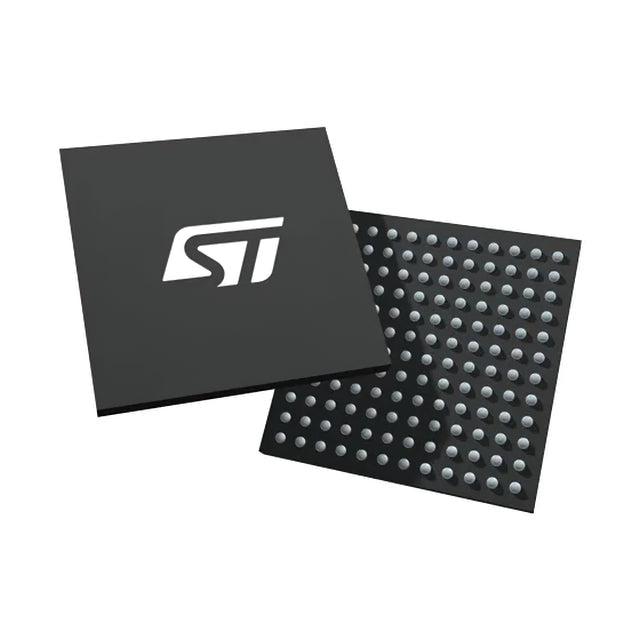

STMicroelectronics STM32H7S3L8H6H
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.37 | $16.37 |
| 15+ | $10.75 | $161.25 |
| 25+ | $10.52 | $263.00 |
| 50+ | $9.94 | $497.00 |
| 100+ | $8.77 | $877.00 |
| N+ | $1.75 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H7 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit |
| Speed | 600MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 150 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 616K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 20x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 225-TFBGA (13x13) |
| Package / Case | 225-TFBGA |
| ROHS |  |
The STMicroelectronics STM32H7S3L8H6H is a high-performance 32-bit microcontroller featuring an ARM Cortex-M7 core at 600MHz. It includes 64KB of flash and 616KB of SRAM, operating from 1.71V to 3.6V. Packaged in a 225-TFBGA, it offers advanced connectivity and peripherals like I2S, DMA, and PWM, targeting demanding embedded applications.
- Ultra-High Performance: 600MHz Cortex-M7 core for intensive computational tasks.
- Large RAM: 616KB SRAM supports complex real-time applications.
- Advanced Audio Interface: Integrated I2S for high-fidelity audio streaming.
- Low Voltage Operation: 1.71V minimum supply enables energy-efficient designs.
AI-Enabled Edge Devices
The 600MHz Cortex-M7 core provides enough compute power for running lightweight neural networks for predictive maintenance.
High-Speed Data Acquisition
With 616KB RAM and DMA, it can capture and process high-bandwidth sensor data in real-time for oscilloscopes or spectrum analyzers.
Audio Processing
The I2S interface and high clock speed support advanced audio algorithms like noise cancellation and voice recognition.
Industrial Vision Systems
Its processing capability enables real-time image preprocessing for barcode reading or defect detection.
Motor Control with Safety
Combining PWM, brown-out detection, and high-speed execution, it handles complex FOC for automotive or industrial motors.
Portable Medical Devices
The low voltage operation (1.71V) and high performance make it suitable for battery-powered diagnostic tools.
- Q: What is the core processor?
- A: It is based on the ARM Cortex-M7 core.
- Q: What is the maximum clock speed?
- A: It runs at up to 600MHz.
- Q: How much RAM is available?
- A: It has 616KB of SRAM.
- Q: What is the package type?
- A: It comes in a 225-TFBGA package.
