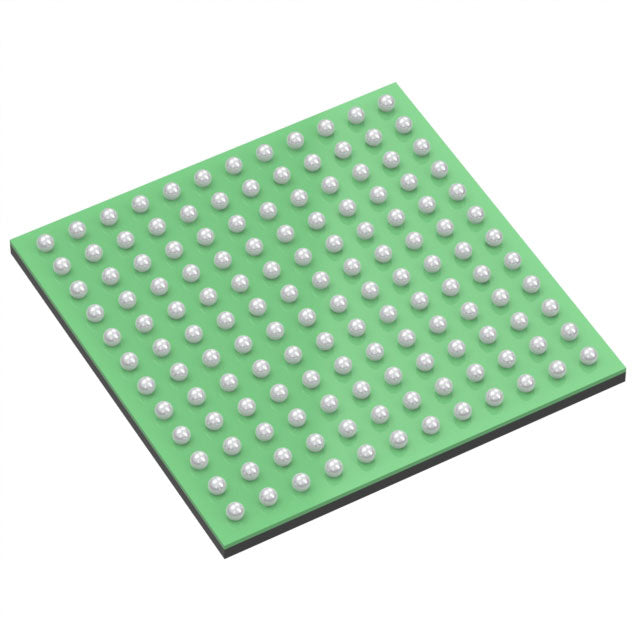

STMicroelectronics STM32H7S3Z8J6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.54 | $12.54 |
| 15+ | $8.24 | $123.60 |
| 25+ | $8.06 | $201.50 |
| 50+ | $7.62 | $381.00 |
| 100+ | $6.72 | $672.00 |
| N+ | $1.34 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H7 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit |
| Speed | 600MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 94 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 616K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 17x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-UFBGA (10x10) |
| Package / Case | 144-UFBGA |
| ROHS |  |
The STMicroelectronics STM32H7S3Z8J6 is a high-performance 32-bit MCU with an ARM Cortex-M7 core at 600MHz. It offers 64KB flash and 616KB RAM in a 144-UFBGA package. This MCU is designed for compute-intensive applications where external memory is used, providing exceptional processing power for advanced embedded systems.
- 600MHz Cortex-M7: Industry-leading performance for demanding applications.
- 616KB RAM: Large working memory for data buffering and complex algorithms.
- High-speed peripherals (DMA, PWM): Efficient data movement and control.
- Compact 144-UFBGA: Suitable for high-density PCB layouts.
High-End Audio Processing
The 600MHz Cortex-M7 can handle real-time audio effects and multi-channel processing for professional equipment.
Machine Vision Systems
With 616KB RAM, it can buffer image data for inspection cameras and pattern recognition.
Advanced Motor Control
Its high speed enables complex field-oriented control for servo drives and drones.
Edge AI Inference
The processing power supports small neural network models for predictive maintenance.
Telecommunications
It can manage protocol stacks for 5G small cells and baseband processing.
Medical Imaging
High-speed data processing aids in ultrasound and OCT imaging systems.
- Q: What is the core and speed?
- A: It uses the ARM Cortex-M7 core running at up to 600MHz, offering exceptional performance.
- Q: How much flash memory does it have?
- A: It has 64KB of flash, which is limited; external memory is often required.
- Q: What is the RAM size?
- A: It has 616KB of RAM, suitable for data-heavy applications.
- Q: What package is available?
- A: It comes in a 144-UFBGA package, compact for high-density designs.
