STMicroelectronics STM32H7S7A8I6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.35 | $11.35 |
| 15+ | $7.46 | $111.90 |
| 25+ | $7.30 | $182.50 |
| 50+ | $6.89 | $344.50 |
| 100+ | $6.08 | $608.00 |
| N+ | $1.22 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H7 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit |
| Speed | 600MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 117 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 616K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 17x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

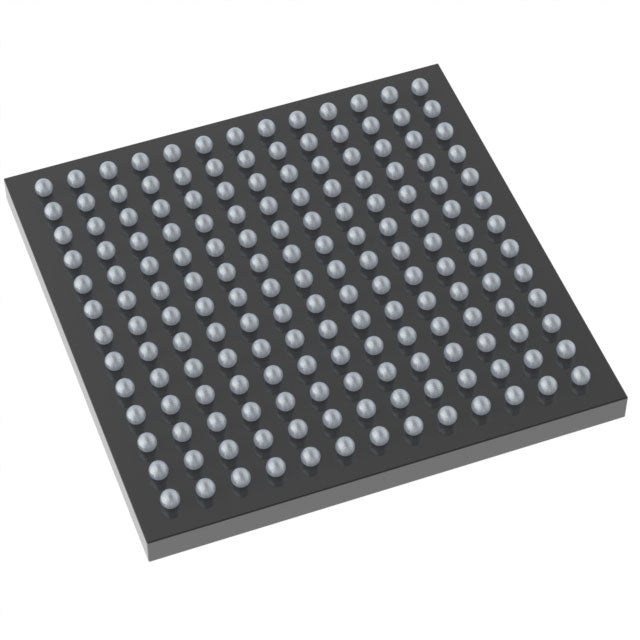

| Supplier Device Package | 169-UFBGA (7x7) |
| Package / Case | 169-UFBGA |
| ROHS |  |
The STMicroelectronics STM32H7S7A8I6 is a flagship MCU featuring an ARM Cortex-M7 core at 600MHz. It provides 616KB RAM and 64KB flash, with a rich peripheral set including LCD, I2S, and DMA. Operating from 1.71V to 3.6V, it is optimized for high-performance, power-sensitive applications. The 169-UFBGA package offers a compact solution for advanced embedded systems.
- Ultra-Fast Core: 600MHz Cortex-M7 for compute-intensive tasks.
- Multimedia Ready: LCD and I2S peripherals support rich user interfaces.
- Flexible Power: Wide voltage range from 1.71V to 3.6V.
- Large SRAM: 616KB enables complex data buffering without external memory.
High-End Audio Processors
The 600MHz Cortex-M7 with I2S support enables high-fidelity audio processing and streaming.
Advanced HMI Displays
Integrated LCD controller and large RAM allow smooth GUI rendering on TFT panels.
Industrial Vision Systems
High-speed processing and DMA facilitate real-time image capture and analysis.
Robotics Controllers
PWM outputs and fast computation support precise servo control and kinematics.
Edge AI Inference
The powerful core can run lightweight neural networks for predictive maintenance.
Portable Instrumentation
Low voltage operation (1.71V) enables battery-powered precision measurement tools.
- Q: What is the maximum clock speed?
- A: The core runs at up to 600MHz.
- Q: Does it support graphical displays?
- A: Yes, it includes an LCD controller and I2S for multimedia.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V.
- Q: How much RAM is available?
- A: It has 616KB of SRAM.
