STMicroelectronics STM32L073VZI6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.31 | $6.31 |
| 15+ | $4.15 | $62.25 |
| 25+ | $4.06 | $101.50 |
| 50+ | $3.83 | $191.50 |
| 100+ | $3.38 | $338.00 |
| N+ | $0.68 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32L0 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 84 |
| Program Memory Size | 192KB (192K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 6K x 8 |
| RAM Size | 20K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

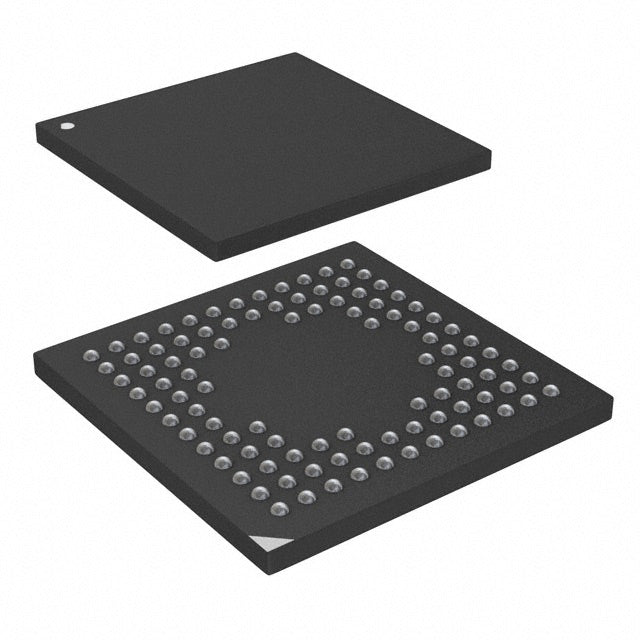

| Supplier Device Package | 100-UFBGA (7x7) |
| Package / Case | 100-UFBGA |
| ROHS |  |
The STM32L073VZI6 is an ultra-low-power 32-bit microcontroller from STMicroelectronics, based on the ARM Cortex-M0+ core at 32 MHz. It offers 192 KB of flash and 20 KB of RAM, with a supply voltage range of 1.8V to 3.6V. The device includes an LCD controller, DMA, I2S, PWM, and various safety features. Packaged in a 100-UFBGA, it is ideal for power-sensitive applications.
- Ultra-Low Power: Optimized for battery-powered devices.
- Integrated LCD: Eliminates external display drivers.
- Rich Connectivity: I2S and DMA support audio and data streaming.
- Compact BGA: 100-UFBGA saves PCB space.
Smart Meters
The integrated LCD controller and low power consumption are perfect for utility meters.
Wearable Devices
Ultra-low-power Cortex-M0+ core extends battery life in fitness trackers.
Industrial Sensors
DMA and I2S support high-speed data acquisition and audio interfaces.
Medical Monitors
Reliable operation and rich peripherals enable portable patient monitoring.
Building Automation
LCD display and multiple communication interfaces simplify control panels.
IoT Gateways
Low power and ample memory support edge processing in smart home hubs.
- Q: What core does the STM32L073VZI6 use?
- A: It uses an ARM Cortex-M0+ core running at up to 32 MHz.
- Q: What is the program memory size?
- A: It has 192 KB of flash and 20 KB of RAM.
- Q: Does it support LCD?
- A: Yes, it includes an integrated LCD controller.
- Q: What is the supply voltage?
- A: It operates from 1.8V to 3.6V.
