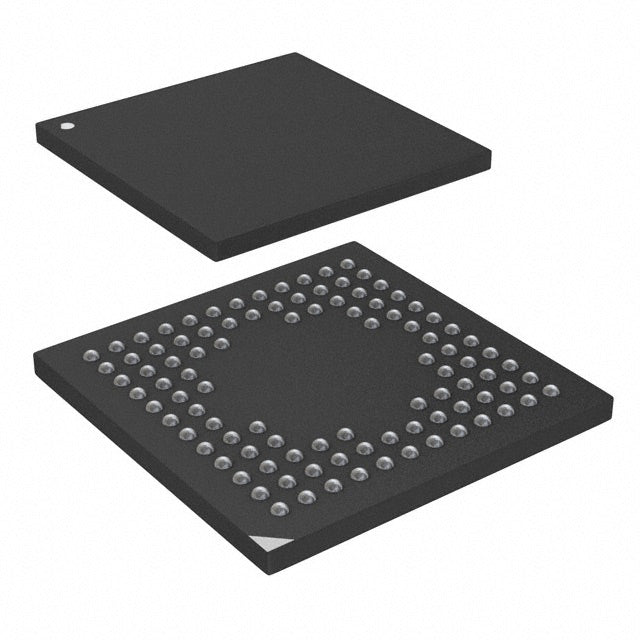

STMicroelectronics STM32L073VZI6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.65 | $12.65 |
| 15+ | $2.91 | $43.65 |
| 25+ | $2.84 | $71.00 |
| 50+ | $2.69 | $134.50 |
| 100+ | $2.37 | $237.00 |
| N+ | $0.47 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32L0 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 84 |
| Program Memory Size | 192KB (192K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 6K x 8 |
| RAM Size | 20K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-UFBGA (7x7) |
| Package / Case | 100-UFBGA |
| ROHS |  |
The STM32L073VZI6TR is an ultra-low-power 32-bit MCU from STMicroelectronics, featuring an ARM Cortex-M0+ core at 32MHz. It offers 192KB of flash and 20KB of RAM, with an integrated LCD driver. Operating from 1.8V to 3.6V, it includes DMA, I2S, POR, PWM, and WDT, packaged in a 100-UFBGA.
- Integrated LCD driver: Eliminates external display driver ICs, reducing BOM cost.
- Ultra-low power: Cortex-M0+ core and 1.8V operation extend battery life.
- Rich analog peripherals: I2S and DMA support audio and data streaming.
- Compact BGA package: 100-UFBGA saves board space for miniaturized designs.
Smart Meters (Gas/Water)
The integrated LCD controller and low-power Cortex-M0+ core enable direct display and long battery life in utility meters.
Portable Medical Monitors
With 1.8V operation and 20KB RAM, it supports wearable vital-sign monitors with graphical displays.
IoT Sensor Nodes
The 192KB flash and DMA support complex sensor fusion algorithms for environmental monitoring.
Industrial HMI Panels
The LCD driver and I2S interface allow building compact operator interfaces with audio feedback.
Battery-Powered Data Loggers
Low-power modes and brown-out detection ensure reliable data capture in remote field deployments.
Consumer Appliances
The rich peripheral set (PWM, WDT) supports control of washing machines and dishwashers.
- Q: What core does this STM32 use?
- A: It is based on the ARM Cortex-M0+ 32-bit RISC core.
- Q: What is the maximum clock speed?
- A: The CPU runs at up to 32MHz.
- Q: Does it have an LCD controller?
- A: Yes, it includes an integrated LCD driver.
- Q: What is the package type?
- A: It comes in a 100-ball UFBGA package.
