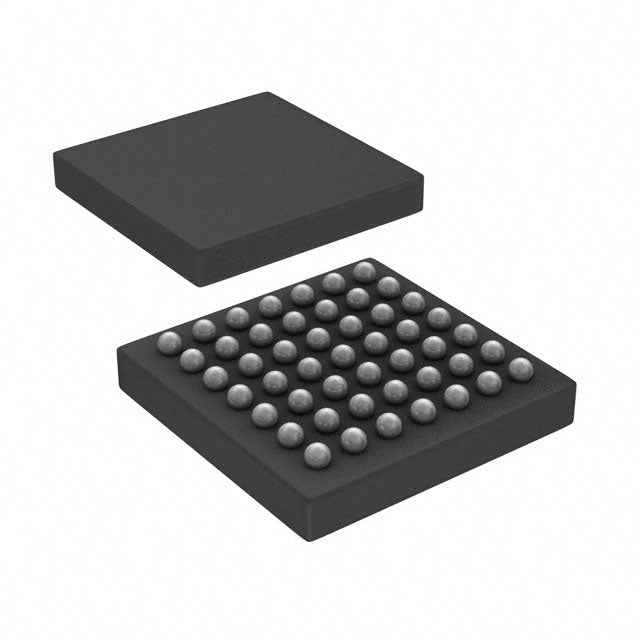

STMicroelectronics STM32L082CZY6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.79 | $6.79 |
| 15+ | $4.46 | $66.90 |
| 25+ | $4.37 | $109.25 |
| 50+ | $4.12 | $206.00 |
| 100+ | $3.64 | $364.00 |
| N+ | $0.73 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32L0 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 40 |
| Program Memory Size | 192KB (192K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 6K x 8 |
| RAM Size | 20K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 13x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 49-WLCSP (3.29x3.26) |
| Package / Case | 49-UFBGA, WLCSP |
| ROHS |  |
The STM32L082CZY6TR is an ultra-low-power microcontroller from STMicroelectronics, built on the ARM Cortex-M0+ core. It operates at up to 32 MHz and provides 192KB of flash memory and 20KB of RAM. With a supply voltage range of 1.8V to 3.6V, it is designed for energy-efficient applications. The device includes a rich set of peripherals such as DMA, I2S, LCD controller, PWM timers, and a watchdog timer. Its compact 49-UFBGA package makes it suitable for space-constrained designs.
- Ultra-low power consumption: Extends battery life in portable devices, thanks to multiple low-power modes and a wide voltage range.
- Integrated LCD driver: Reduces external components and simplifies display interface design.
- High memory density: 192KB flash and 20KB RAM support complex applications without external memory.
- Compact WLCSP package: Saves PCB space, ideal for miniaturized products.
- Robust security features: Includes brown-out reset and watchdog timer for reliable operation.
Battery-Powered IoT Sensors
The low 1.8V operation and multiple low-power modes make it perfect for wireless sensor nodes that need to run for years on a coin cell.
Portable Medical Devices
With its integrated LCD driver and 192KB flash, it can handle complex monitoring algorithms while displaying data on a small screen.
Smart Home Controllers
The PWM and DMA capabilities allow for smooth control of lighting and motor systems, while the WDT ensures reliable operation.
Industrial Data Loggers
Its robust brown-out detection and wide temperature range (-40°C to 85°C) ensure reliable data capture in harsh environments.
Wearable Fitness Trackers
The ultra-small WLCSP package and low power consumption enable compact, long-lasting wearable designs.
Metering and Monitoring
The integrated LCD and analog features support accurate measurement and display for utility meters.
- Q: What is the core processor of the STM32L082CZY6TR?
- A: It is based on the ARM Cortex-M0+ core, running at up to 32 MHz.
- Q: What is the operating voltage range?
- A: It operates from 1.8V to 3.6V, suitable for battery-powered applications.
- Q: Does it have an LCD controller?
- A: Yes, it includes an LCD driver, making it ideal for display applications.
- Q: What is the package type?
- A: It comes in a 49-UFBGA (WLCSP) package, which is compact for space-constrained designs.
