STMicroelectronics STM32L083RZT6
Regular price
$7.62
Regular price
$5.44
Sale price
$7.62
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.62 | $7.62 |
| 15+ | $5.00 | $75.00 |
| 25+ | $4.90 | $122.50 |
| 50+ | $4.62 | $231.00 |
| 100+ | $4.08 | $408.00 |
| N+ | $0.82 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32L0 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 51 |
| Program Memory Size | 192KB (192K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 6K x 8 |
| RAM Size | 20K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

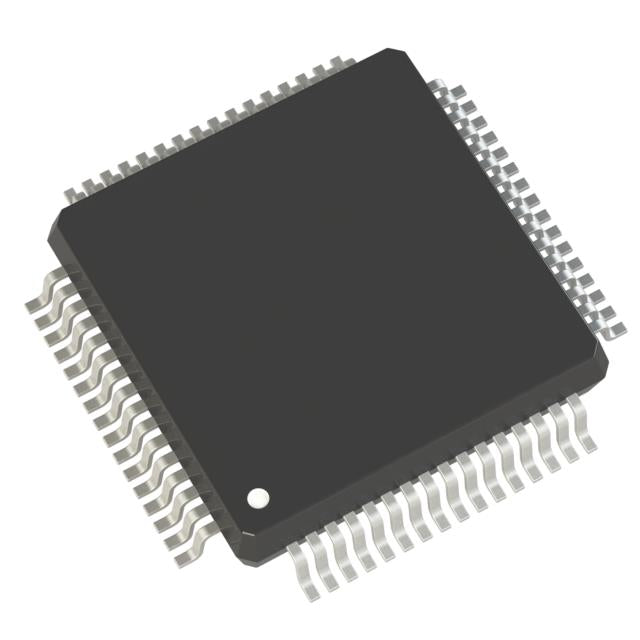

| Supplier Device Package | 64-LQFP (10x10) |
| Package / Case | 64-LQFP |
| ROHS |  |
The STM32L083RZT6 from STMicroelectronics is an ultra-low-power MCU based on the ARM Cortex-M0+ core. It operates at 32MHz with 192KB flash and 20KB RAM. Features include an LCD driver, DMA, I2S, and multiple analog peripherals, ideal for energy-efficient embedded designs.
- Ultra-low power: Optimized for battery life with multiple low-power modes.
- Integrated LCD: Reduces external components and BOM cost.
- Rich analog: Suitable for sensor signal conditioning.
- Wide voltage range: Flexible power supply design.
Industrial Control Panels
Integrated LCD controller and PWM for display and motor control.
Smart Meters
Low-power ARM Cortex-M0+ with DMA for efficient data logging.
Portable Medical Devices
1.8V operation and WDT ensure reliable battery-powered operation.
Home Automation Hubs
I2S for audio and multiple timers for sensor interfacing.
IoT Sensor Nodes
192KB flash and 20KB RAM support complex protocols.
Battery Management Systems
Brown-out detect and POR for safe shutdown.
- Q: What is the operating voltage range?
- A: 1.8V to 3.6V.
- Q: Does it support LCD?
- A: Yes, integrated LCD controller.
- Q: What is the max CPU speed?
- A: 32MHz.
- Q: What package is available?
- A: 64-LQFP.
Base Product Number ：
STM32L083RZ
