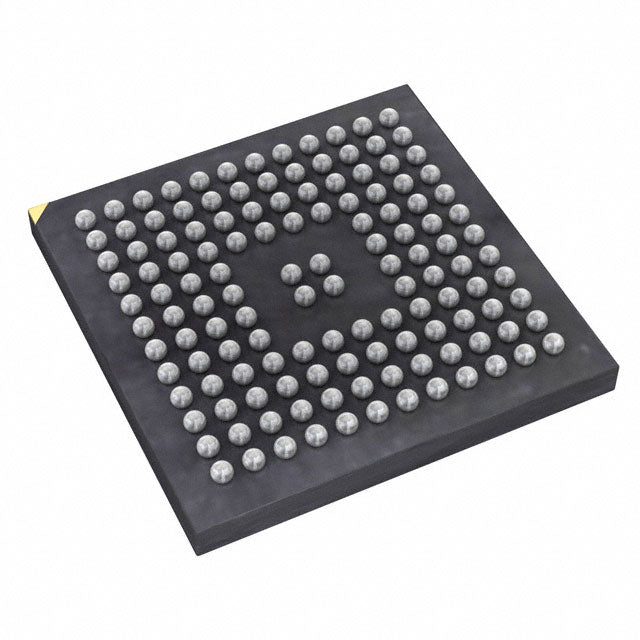

STMicroelectronics STM32L152QDH6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $27.93 | $27.93 |
| 15+ | $6.42 | $96.30 |
| 25+ | $6.28 | $157.00 |
| 50+ | $5.93 | $296.50 |
| 100+ | $5.24 | $524.00 |
| N+ | $1.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32L1 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, Cap Sense, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 109 |
| Program Memory Size | 384KB (384K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 12K x 8 |
| RAM Size | 48K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 40x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 132-UFBGA (7x7) |
| Package / Case | 132-UFBGA |
| ROHS |  |
The STM32L152QDH6 from STMicroelectronics is a low-power ARM Cortex-M3 MCU with 384KB flash and 48KB RAM. It features an integrated LCD driver, Cap Sense touch, I2S, and DMA, operating at 32MHz with a 1.8V-3.6V supply. Packaged in 132-UFBGA, it suits display-centric and battery-powered applications.
- Integrated LCD controller: Drives displays directly, reducing external components.
- Ultra-low-power design: Ideal for energy-harvesting and battery applications.
- Rich analog and digital peripherals: Includes I2S, DMA, and multiple timers.
- Cap Sense touch support: Enables modern touch interfaces without extra ICs.
Smart Meters
Integrated LCD driver and low-power modes make it ideal for utility metering with display.
Medical Monitoring Devices
Cap Sense touch and low voltage (1.8V) support portable patient monitors.
Building Automation
Use I2S for audio interfaces and PWM for lighting control in smart buildings.
Industrial Sensors
384KB flash enables complex calibration algorithms and data logging.
Portable Consumer Electronics
Low-power Cortex-M3 with LCD and touch extends battery life in remote controls.
Data Acquisition Systems
DMA and multiple timers allow synchronized sampling from multiple sensors.
- Q: What is the core processor of the STM32L152QDH6?
- A: It uses an ARM Cortex-M3 core at 32MHz.
- Q: Does it support LCD driving?
- A: Yes, it has an integrated LCD controller.
- Q: What is the memory configuration?
- A: It has 384KB flash and 48KB RAM.
- Q: What package is this MCU available in?
- A: It comes in a 132-UFBGA package.
