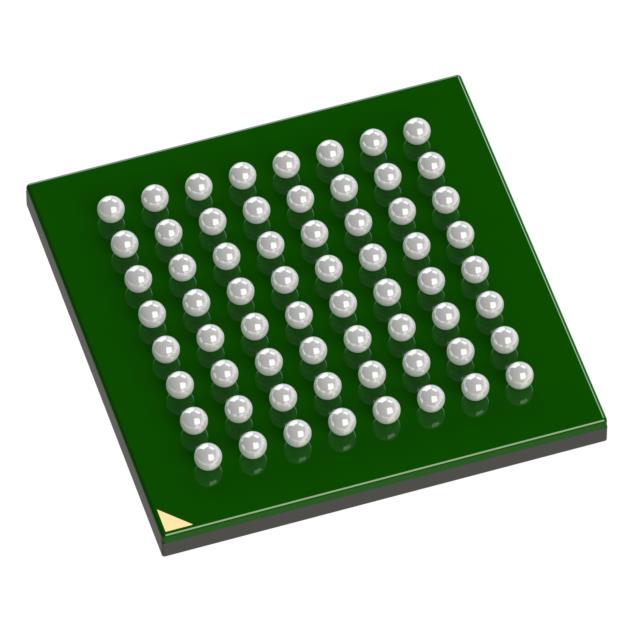

STMicroelectronics STM32L152R8H6A
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.39 | $13.39 |
| 15+ | $3.08 | $46.20 |
| 25+ | $3.02 | $75.50 |
| 50+ | $2.85 | $142.50 |
| 100+ | $2.51 | $251.00 |
| N+ | $0.50 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32L1 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, Cap Sense, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 51 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 20x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-TFBGA (5x5) |
| Package / Case | 64-TFBGA |
| ROHS |  |
The STM32L152R8H6A is an ultra-low-power 32-bit microcontroller from STMicroelectronics, featuring an ARM Cortex-M3 core at 32MHz. It offers 64KB of flash and 32KB of SRAM, with a supply range of 1.8V to 3.6V. This device integrates an LCD driver, capacitive touch sensing, DMA, I2S, POR, PWM, and WDT in a 64-TFBGA package, making it perfect for battery-powered applications requiring a display and touch interface.
- Ultra-Low Power: Multiple low-power modes extend battery life in portable devices.
- Integrated LCD Driver: Eliminates external display driver ICs, reducing BOM cost and board space.
- CapSense Touch: Enables modern, sealed user interfaces without mechanical buttons.
- Wide Voltage Range: 1.8V-3.6V supports direct operation from lithium and alkaline batteries.
Smart Meters
The integrated LCD controller and low-power modes enable long-life gas and water meters with local display.
Wearable Health Trackers
CapSense touch buttons and 32MHz Cortex-M3 allow intuitive user interfaces while consuming minimal power.
Portable Industrial Tools
With 1.8V operation and brown-out detection, it suits battery-powered calibration equipment and data loggers.
Home Automation Panels
The LCD driver and I2S support building control panels with audio feedback and touch controls.
Medical Infusion Pumps
Reliable POR and WDT ensure safe operation, while the 64KB flash handles complex dosing algorithms.
Environmental Sensors
Low-power DMA and multiple wakeup sources make it ideal for remote weather stations.
- Q: What is unique about the STM32L152R8H6A?
- A: It integrates an LCD driver, capacitive touch sensing, and ultra-low-power operation for battery devices.
- Q: What is the maximum clock speed?
- A: The Cortex-M3 core runs at up to 32MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 3.6V, supporting single-cell battery applications.
- Q: What package is used?
- A: It comes in a 64-ball TFBGA package, offering a compact footprint with good thermal characteristics.
