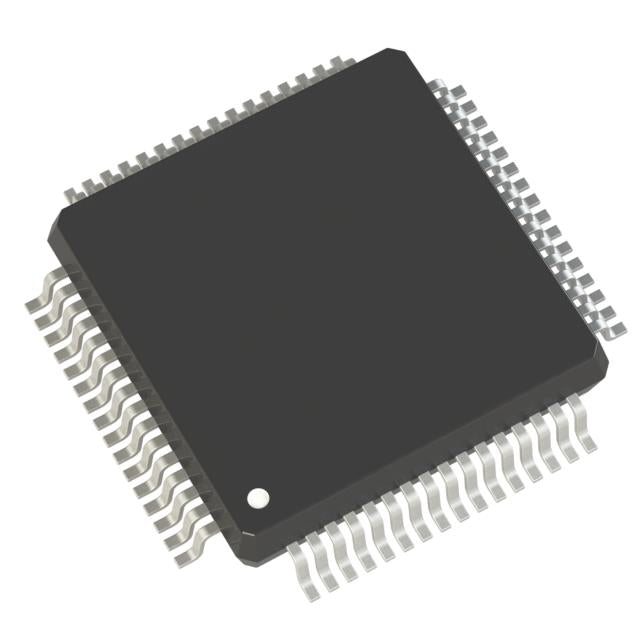

STMicroelectronics STM32L486RGT6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.83 | $13.83 |
| 15+ | $9.09 | $136.35 |
| 25+ | $8.89 | $222.25 |
| 50+ | $8.40 | $420.00 |
| 100+ | $7.41 | $741.00 |
| N+ | $1.48 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32L4 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 80MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, PWM, WDT |
| Number of I/O | 51 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (10x10) |
| Package / Case | 64-LQFP |
| ROHS |  |
The STM32L486RGT6 is an ultra-low-power ARM Cortex-M4 MCU from STMicroelectronics. Operating at 80MHz with 1MB flash and 128KB RAM, it balances performance and efficiency. Its 1.71V-3.6V supply and 64-LQFP package are ideal for compact designs. The integrated LCD controller, DMA, and PWM make it perfect for battery-powered applications.
- Ultra-Low Power: Multiple low-power modes extend battery life significantly.
- Integrated LCD Driver: Eliminates external display driver ICs.
- Large Flash: 1MB for complex firmware and data logging.
- Compact Package: 64-LQFP saves PCB space.
Battery-Powered Medical Devices
Ultra-low-power modes and 1.71V operation extend battery life in glucose meters and pulse oximeters.
Smart Meters
Segment LCD driver and low-power RTC enable always-on display for utility meters with years of battery life.
Industrial Sensors
With 1MB flash for logging and 80MHz M4 for signal processing, it suits vibration and temperature sensors.
Portable Instrumentation
The integrated LCD and DMA allow compact handheld multimeters with graphical displays.
Building Automation
Low-power operation and multiple communication interfaces support BACnet and Modbus controllers.
Wearable Fitness Trackers
Its small 64-LQFP package and low-power DMA enable continuous sensor fusion with minimal power draw.
- Q: What is the core and speed?
- A: ARM Cortex-M4 with FPU at 80MHz.
- Q: How much flash and RAM?
- A: 1MB flash and 128KB RAM.
- Q: What is the voltage range?
- A: 1.71V to 3.6V.
- Q: Does it have an LCD controller?
- A: Yes, it supports segment LCD driving.
- Q: What is the temperature range?
- A: -40°C to 85°C.
