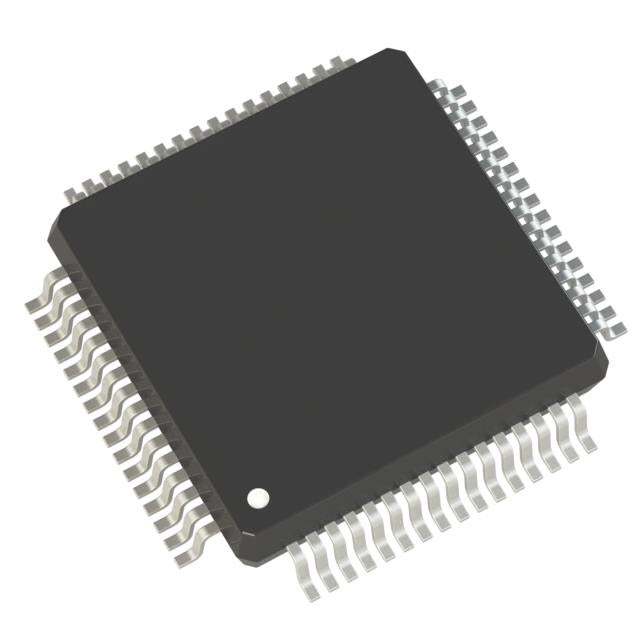

STMicroelectronics STM32L486RGT7TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.71 | $14.71 |
| 15+ | $9.67 | $145.05 |
| 25+ | $9.46 | $236.50 |
| 50+ | $8.93 | $446.50 |
| 100+ | $7.88 | $788.00 |
| N+ | $1.58 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32L4 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 80MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, PWM, WDT |
| Number of I/O | 51 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (10x10) |
| Package / Case | 64-LQFP |
| ROHS |  |
The STM32L486RGT7TR from STMicroelectronics is a high-performance 32-bit microcontroller based on the ARM Cortex-M4 core with FPU, running at up to 80MHz. It offers 1MB of Flash and 128KB of RAM, making it ideal for complex applications. The device operates from 1.71V to 3.6V and is available in a 64-LQFP package. With integrated LCD controller, DMA, PWM, and brown-out detection, it is designed for advanced industrial, medical, and consumer applications requiring low power and high functionality.
- ARM Cortex-M4 with FPU: Provides efficient floating-point processing for DSP and control algorithms.
- Large Memory (1MB Flash, 128KB RAM): Supports complex firmware and data-intensive applications.
- Integrated LCD Controller: Reduces external components for display applications.
- Wide Temperature Range (-40°C to 105°C): Suitable for harsh environments.
Smart Home Displays
The integrated LCD controller and 1MB Flash allow for rich user interfaces on thermostats or security panels, with the Cortex-M4 handling graphics.
Industrial Sensors
With 80MHz and 128KB RAM, it can process complex sensor fusion algorithms for predictive maintenance in factories.
Medical Wearables
Its low power modes and wide temperature range (-40°C to 105°C) make it suitable for patient monitors that require long battery life.
Portable Instrumentation
The 1MB Flash enables data logging and complex signal processing in oscilloscopes or spectrum analyzers.
Automotive Body Electronics
Robust features and 105°C rating support use in window lift or lighting control modules.
Energy Management
Use it in smart meters or solar inverters; the PWM and DMA features enable efficient power conversion and monitoring.
- Q: What is the core processor of the STM32L486RGT7TR?
- A: It uses an ARM Cortex-M4 core with FPU running at up to 80MHz.
- Q: What is the program memory size?
- A: It has 1MB of Flash memory.
- Q: What is the package type?
- A: It comes in a 64-LQFP package.
- Q: Does it have an LCD controller?
- A: Yes, it includes an LCD controller, along with DMA, PWM, and WDT.
