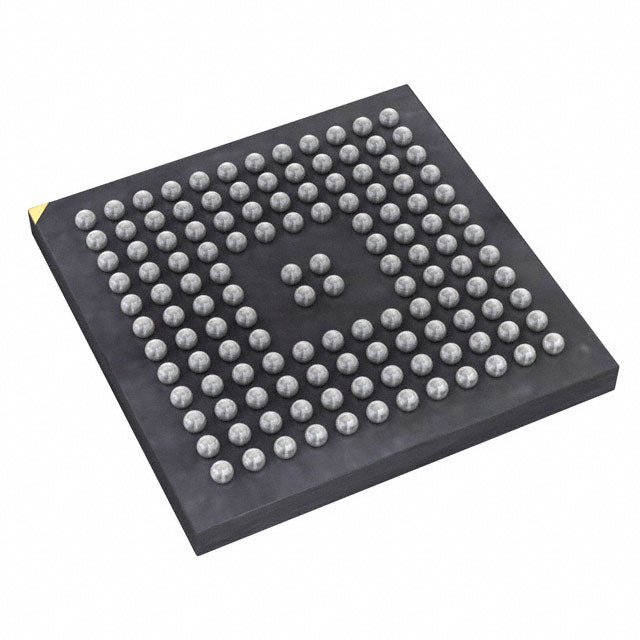

STMicroelectronics STM32L496QGI3
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.45 | $18.45 |
| 15+ | $12.13 | $181.95 |
| 25+ | $11.86 | $296.50 |
| 50+ | $11.20 | $560.00 |
| 100+ | $9.89 | $989.00 |
| N+ | $1.98 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32L4 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 80MHz |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, PWM, WDT |
| Number of I/O | 110 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 320K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 19x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 132-UFBGA (7x7) |
| Package / Case | 132-UFBGA |
| ROHS |  |
The STM32L496QGI3 from STMicroelectronics is a low-power 32-bit microcontroller based on the ARM Cortex-M4 core with FPU, running at up to 80MHz. It provides 1MB of flash memory and 320KB of SRAM, making it ideal for complex, energy-efficient applications. The device operates from 1.71V to 3.6V and is available in a 132-pin UFBGA package. Integrated peripherals include an LCD controller, DMA, PWM, POR, BOR, and WDT, offering a comprehensive solution for wearable, medical, and industrial IoT devices. Its extended temperature range (-40°C to 125°C) ensures reliable operation in extreme conditions.
- Ultra-Low Power: Optimized Cortex-M4 core and wide voltage range extend battery life in portable devices.
- Large Memory: 1MB flash and 320KB SRAM support complex applications and data buffering.
- Integrated LCD Controller: Directly drives displays, reducing external components and system cost.
- Extended Temperature Range: -40°C to 125°C ensures operation in harsh industrial environments.
Battery-Powered Medical Devices
The 1.71V-3.6V range and low-power Cortex-M4 core enable long battery life for glucose meters and insulin pumps. 320KB RAM supports complex data logging.
Smart Wearables with Display
The integrated LCD controller drives small displays directly, reducing BOM cost. 1MB flash stores UI assets and firmware updates.
Industrial Sensor Nodes
With -40°C to 125°C operation, it suits harsh environments. The 132-UFBGA package allows compact sensor modules with multiple I/O for various transducers.
IoT Edge Devices
Low power consumption and 1MB flash enable edge computing with local AI inference. The Cortex-M4 FPU accelerates math for sensor fusion.
Smart Meters and Utilities
The LCD driver and low power make it ideal for gas/water meters. 320KB RAM buffers usage data, and the wide temperature range ensures outdoor reliability.
Portable Instrumentation
High memory and low power support handheld oscilloscopes or multimeters. The 132-pin package provides enough GPIO for external ADC/DAC and display interfaces.
- Q: What core does the STM32L496QGI3 use?
- A: It is based on the ARM Cortex-M4 core with FPU, running at up to 80MHz, optimized for low power.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V, supporting battery-powered and energy-efficient designs.
- Q: How much flash and RAM are available?
- A: It features 1MB of flash memory and 320KB of SRAM, ideal for complex low-power applications.
- Q: What package is this device in?
- A: It comes in a 132-pin UFBGA (QGI3) package, offering high I/O density in a small form factor.
- Q: Does it have an LCD controller?
- A: Yes, it includes an LCD driver, along with DMA, PWM, POR, BOR, and WDT peripherals.
