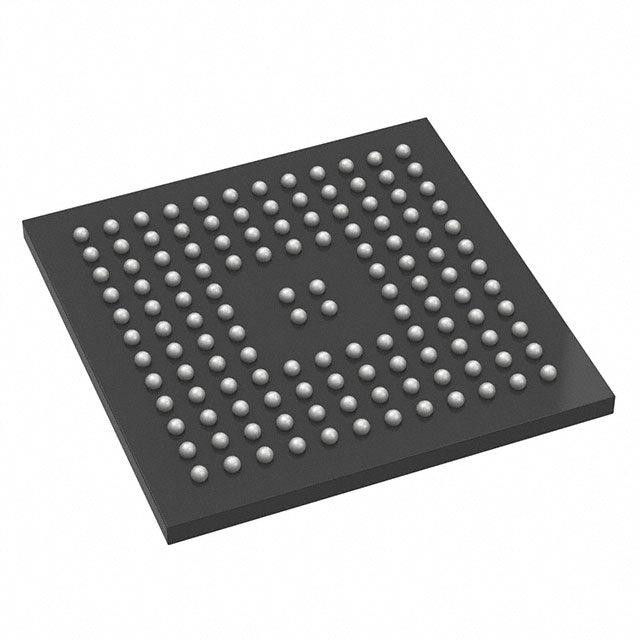

STMicroelectronics STM32L496QGI6STR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $27.70 | $27.70 |
| 15+ | $6.37 | $95.55 |
| 25+ | $6.23 | $155.75 |
| 50+ | $5.88 | $294.00 |
| 100+ | $5.19 | $519.00 |
| N+ | $1.04 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32L4 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 80MHz |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, PWM, WDT |
| Number of I/O | 110 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 320K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 19x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 132-UFBGA (7x7) |
| Package / Case | 132-UFBGA |
| ROHS |  |
The STM32L496QGI6STR is a low-power 32-bit MCU from STMicroelectronics, featuring an ARM Cortex-M4 core at 80MHz. It provides 1MB flash and 320KB RAM, enabling complex firmware. The device operates from 1.71V to 3.6V, optimizing energy efficiency. It includes an LCD controller, DMA, PWM, and brown-out detection. Packaged in a 132-UFBGA, it suits compact, battery-powered applications.
- Ultra-low power: 1.71V operation and multiple low-power modes extend battery life.
- Large memory: 1MB flash and 320KB RAM support complex applications.
- Integrated LCD driver: Eliminates external display driver ICs.
- Compact package: 132-UFBGA saves PCB space for portable devices.
Battery-Powered IoT Gateways
The 1.71V minimum supply and multiple low-power modes allow long battery life while the 80MHz Cortex-M4 handles MQTT and TLS encryption.
Medical Monitoring Devices
With 1MB flash, it can store patient data logs, while the LCD controller drives a segment display for vital signs. The -40°C to 85°C range covers clinical environments.
Smart Meters
DMA and PWM support accurate pulse counting and tamper detection, while the low-power modes enable years of operation on a single battery.
Portable Instrumentation
The 320KB RAM allows large data buffers for waveform analysis, and the FPU accelerates signal processing algorithms.
Industrial Sensor Hubs
Multiple UART/SPI/I2C interfaces connect to various sensors, while the brown-out detector ensures reliable operation during power dips.
Wearable Devices
The compact 132-UFBGA package and low-power features make it ideal for fitness trackers with LCD readouts.
- Q: What is the core and speed of STM32L496QGI6STR?
- A: It uses an ARM Cortex-M4 core at 80MHz, with FPU for floating-point operations.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V, supporting low-power battery designs.
- Q: How much flash and RAM are available?
- A: It has 1MB flash and 320KB RAM, suitable for complex applications with GUI or connectivity stacks.
- Q: Does it have an LCD controller?
- A: Yes, it includes an LCD driver, making it suitable for segment LCD displays.
- Q: What package is this variant?
- A: It comes in a 132-UFBGA package, compact for space-constrained PCBs.
