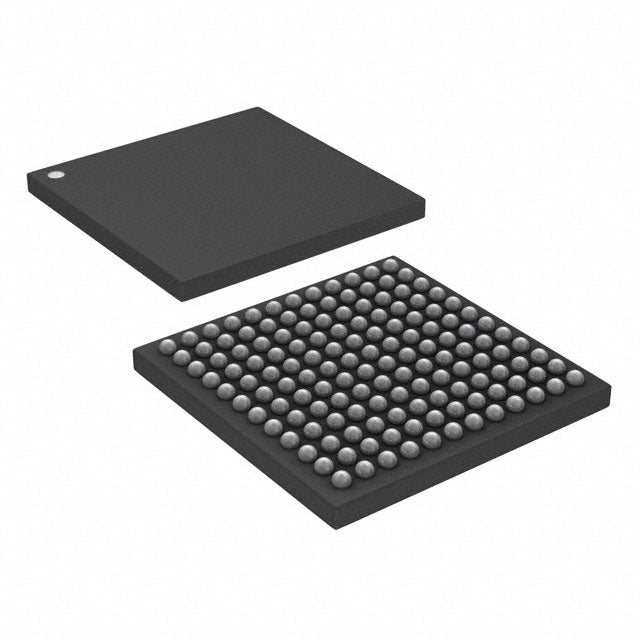

STMicroelectronics STM32L4R5ZGY6TR
Regular price
$29.29
Regular price
$7.32
Sale price
$29.29
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $29.29 | $29.29 |
| 15+ | $6.73 | $100.95 |
| 25+ | $6.59 | $164.75 |
| 50+ | $6.22 | $311.00 |
| 100+ | $5.49 | $549.00 |
| N+ | $1.10 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32L4 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD, SAI, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 115 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 640K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-WLCSP (5.24x5.24) |
| Package / Case | 144-UFBGA, WLCSP |
| ROHS |  |
The STMicroelectronics STM32L4R5ZGY6TR is a high-performance 32-bit MCU with an ARM Cortex-M4 core at 120 MHz. It features 1MB flash and 640KB RAM, operating from 1.71V to 3.6V. Available in 144-UFBGA or WLCSP, it includes DMA, PWM, and comprehensive reset features for advanced embedded systems.
- High-speed 120MHz core: Delivers rapid processing for real-time tasks.
- Large 640KB RAM: Supports complex applications and graphics buffers.
- Ultra-low voltage operation (1.71V): Enables energy-efficient designs.
- Flexible packaging: WLCSP option for ultra-compact devices.
Advanced Wearables
120MHz Cortex-M4 with 640KB RAM supports complex UI and sensor processing.
Smart Home Hubs
Large memory and DMA enable seamless handling of multiple wireless protocols.
Industrial HMI Panels
High RAM and graphics capabilities support rich display interfaces.
Portable Medical Imaging
Fast processing and low power enable handheld ultrasound and diagnostic devices.
Audio Processing
DSP instructions and high speed handle real-time audio effects and codecs.
Energy Harvesting Systems
Ultra-low voltage (1.71V) operation allows direct battery or solar power.
- Q: What is the core speed of the STM32L4R5ZGY6TR?
- A: It runs at up to 120 MHz with an ARM Cortex-M4 core.
- Q: How much RAM is available?
- A: It has 640KB RAM, which is large for graphics and data buffering.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V, supporting low-power designs.
- Q: What packages are available?
- A: It comes in 144-UFBGA and WLCSP options.
Base Product Number ：
STM32L4R5ZGY6
