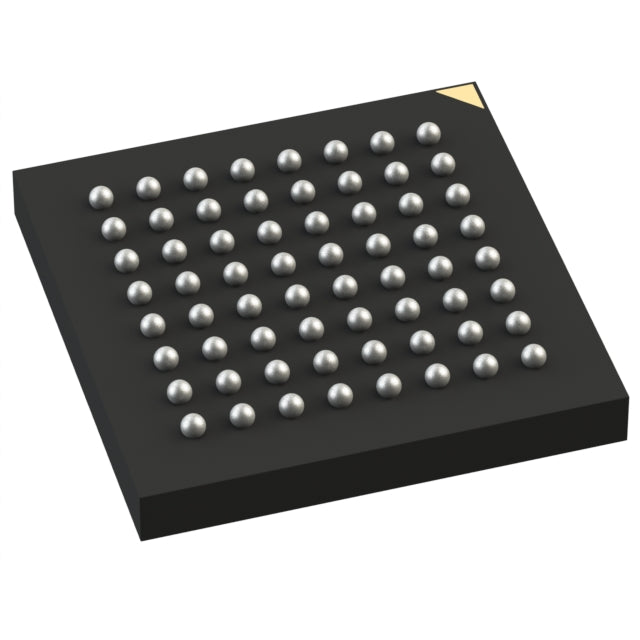

STMicroelectronics STM32U375REI6Q
Regular price
$11.42
Regular price
$2.85
Sale price
$11.42
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.42 | $11.42 |
| 15+ | $2.62 | $39.30 |
| 25+ | $2.57 | $64.25 |
| 50+ | $2.42 | $121.00 |
| 100+ | $2.14 | $214.00 |
| N+ | $0.43 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32U3 |
| Packaging | Bulk | |
| Core Processor | ARM® Cortex®-M33F |
| Core Size | 32-Bit |
| Speed | 96MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, SAI, SmartCard, SPDIF, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 47 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 15x12b SAR; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Memory Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 64-UFBGA (5x5) |
| Supplier Device Package | 64-UFBGA |
The STMicroelectronics STM32U375REI6Q is a 96MHz ARM Cortex-M33F microcontroller with 512KB flash and 256KB RAM. It operates from 1.71V to 3.6V and comes in a 64-UFBGA package. The device includes brown-out detect, DMA, motor control PWM, POR, PWM, and WDT. Designed for -40°C to 85°C, it targets high-performance industrial and consumer applications.
- High-performance M33F core: 96MHz with FPU for DSP tasks.
- Large memory: 512KB flash and 256KB RAM for complex applications.
- Motor control ready: dedicated PWM timers for FOC.
- Ultra-low power: 1.71V operation for energy-efficient designs.
Advanced Motor Control
Motor Control PWM and 96MHz M33F core enable field-oriented control.
Industrial IoT Gateways
512KB flash and 256KB RAM support complex protocols and edge processing.
Medical Devices
High performance and low power make it suitable for portable diagnostics.
Robotics
DMA and PWM provide precise actuator control.
Smart Energy Meters
Low voltage operation and rich peripherals support metering applications.
Audio Processing
M33F with FPU accelerates audio algorithms for voice interfaces.
- Q: What core does it use?
- A: ARM Cortex-M33F with DSP and FPU at 96MHz.
- Q: What is the supply voltage?
- A: 1.71V to 3.6V.
- Q: How much flash and RAM?
- A: 512KB flash and 256KB RAM.
- Q: What package is available?
- A: 64-UFBGA.
- Q: Does it support motor control?
- A: Yes, includes Motor Control PWM.
