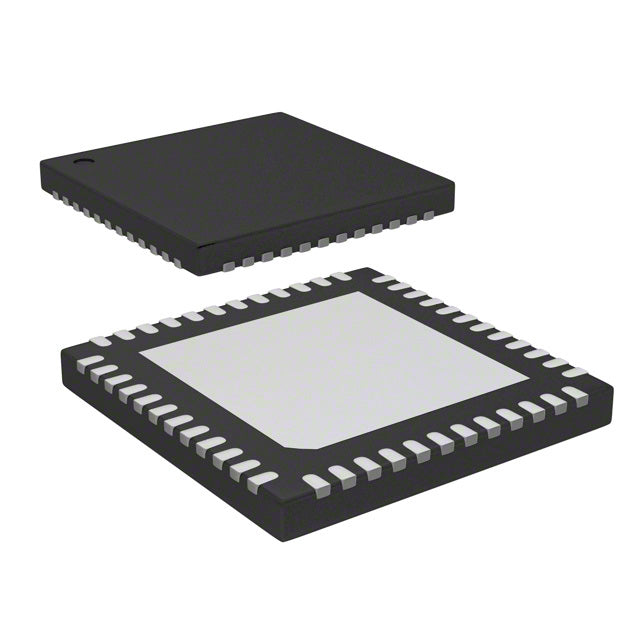

STMicroelectronics STM32U535CEU6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.19 | $14.19 |
| 15+ | $3.27 | $49.05 |
| 25+ | $3.20 | $80.00 |
| 50+ | $3.02 | $151.00 |
| 100+ | $2.66 | $266.00 |
| N+ | $0.53 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32U5 |
| Packaging | Tape & Reel (TR) | |
| Core Processor | ARM® Cortex®-M33F |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, SAI, SmartCard, SPDIF, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 37 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 272K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 11x12/14b SAR; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Memory Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-UFQFPN (7x7) |
| Supplier Device Package | 48-UFQFN Exposed Pad |
The STMicroelectronics STM32U535CEU6TR is an ultra-low-power MCU featuring an ARM Cortex-M33F core at 160MHz. It offers 512KB flash and 272KB RAM, along with advanced peripherals like motor control PWM, DMA, and I2S. Operating from 1.71V to 3.6V and -40°C to 85°C, this 48-UFQFN device is optimized for battery-powered and industrial applications requiring high performance and energy efficiency.
- Ultra-Low Power: ST's low-power technology extends battery life in portable devices.
- Large RAM: 272KB RAM supports complex applications and data buffering.
- Motor Control Ready: Dedicated PWM timers simplify BLDC and PMSM control.
- Compact Package: 48-UFQFN saves board space for miniaturized designs.
Battery-Powered IoT Sensors
The ultra-low-power design with 160MHz Cortex-M33F enables long battery life while handling complex sensor fusion and secure cloud communication.
Motor Control for Drones
Motor control PWM and DMA allow precise, high-frequency control of brushless DC motors, essential for stable flight.
Wearable Health Monitors
With 272KB RAM, it can buffer continuous biometric data streams, while the small 48-UFQFN package fits compact wearable PCBs.
Smart Home Hubs
Rich peripheral set including I2S and PWM supports voice recognition and multi-device control in a single-chip solution.
Industrial Sensor Nodes
Wide voltage range and robust reset features ensure reliable operation in factory environments with power fluctuations.
Portable Test Equipment
High-speed ADC and DMA enable accurate, low-latency data acquisition for handheld multimeters and oscilloscopes.
- Q: What core does the STM32U535CEU6TR use?
- A: It is based on the ARM Cortex-M33F processor.
- Q: What is the maximum clock speed?
- A: The core runs at up to 160MHz.
- Q: How much memory is available?
- A: It has 512KB flash and 272KB RAM.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V.
- Q: What package is this part offered in?
- A: It comes in a 48-UFQFN exposed pad package.
