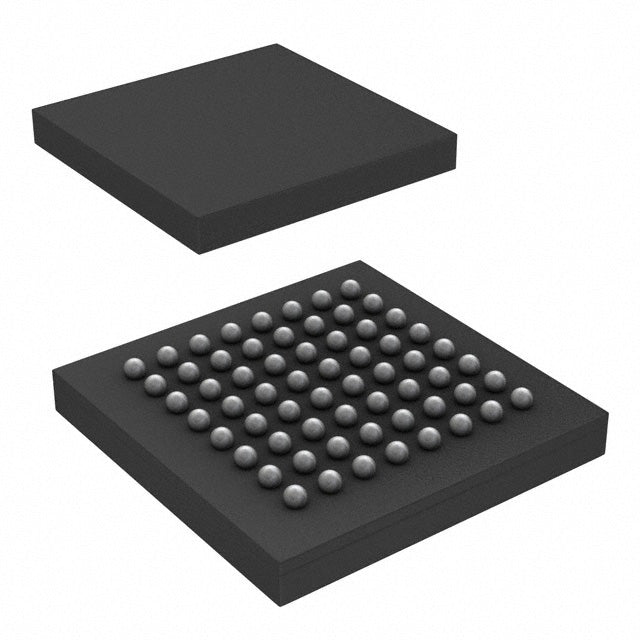

STMicroelectronics STM32U535RBI6Q
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.37 | $6.37 |
| 15+ | $4.19 | $62.85 |
| 25+ | $4.10 | $102.50 |
| 50+ | $3.87 | $193.50 |
| 100+ | $3.41 | $341.00 |
| N+ | $0.68 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32U5 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, SAI, SmartCard, SPDIF, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 47 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 274K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 15x12/14b SAR; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-UFBGA (5x5) |
| Package / Case | 64-UFBGA |
| ROHS |  |
The STM32U535RBI6Q from STMicroelectronics is a high-efficiency MCU featuring an ARM Cortex-M33 core at 160MHz. It offers 128KB flash and 274KB RAM, operating from 1.71V to 3.6V. With motor control PWM, DMA, brown-out detect, POR, PWM, and WDT, it is designed for advanced industrial and consumer applications. The 64-UFBGA package is ideal for space-constrained designs.
- High-speed 160MHz Cortex-M33 with DSP instructions for intensive computation.
- Large 274KB RAM enables complex real-time data buffering and multitasking.
- Integrated motor control PWM simplifies drive electronics for motor applications.
- Ultra-low voltage operation (1.71V) supports energy-efficient and battery-powered designs.
High-Performance Wearables
The Cortex-M33 at 160MHz with 274KB RAM supports complex algorithms for health monitoring and sensor fusion.
Industrial Drives
Motor control PWM and DMA enable precise field-oriented control for BLDC and PMSM motors.
Smart Home Hubs
Low power consumption and high processing power allow always-on voice and gesture recognition.
Medical Monitoring Devices
Reliable brown-out detection and wide temperature range ensure safe operation in patient monitoring equipment.
Robotics Controllers
274KB RAM supports real-time kinematics and multi-axis coordination in compact robots.
Energy Harvesting Systems
Ultra-low voltage operation (1.71V) enables direct battery or supercapacitor power in energy-scavenging nodes.
- Q: What core does the STM32U535RBI6Q use?
- A: It uses the ARM Cortex-M33 core at 160MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V.
- Q: How much flash and RAM are available?
- A: It has 128KB flash and 274KB RAM.
- Q: What package is this MCU in?
- A: It comes in a 64-pin UFBGA package.
- Q: Does it support motor control PWM?
- A: Yes, it includes motor control PWM, DMA, brown-out detect, POR, PWM, and WDT.
