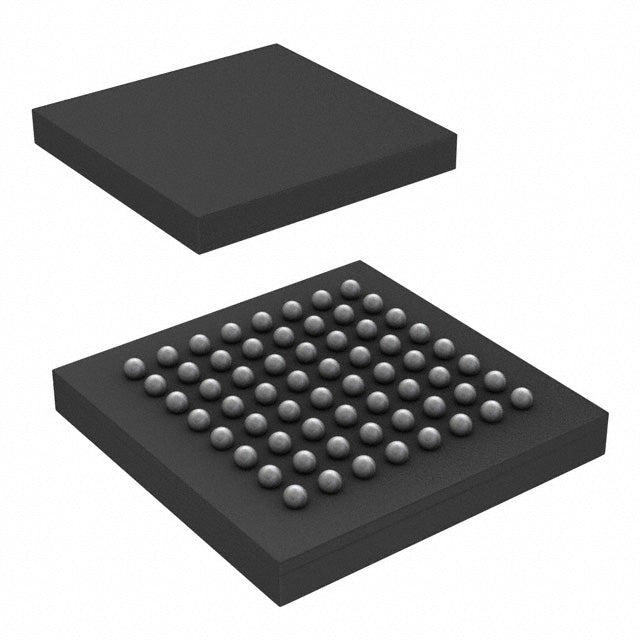

STMicroelectronics STM32U535RCI6Q
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.90 | $6.90 |
| 15+ | $4.54 | $68.10 |
| 25+ | $4.44 | $111.00 |
| 50+ | $4.19 | $209.50 |
| 100+ | $3.70 | $370.00 |
| N+ | $0.74 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32U5 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, SAI, SmartCard, SPDIF, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 47 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 274K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 15x12/14b SAR; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-UFBGA (5x5) |
| Package / Case | 64-UFBGA |
| ROHS |  |
The STM32U535RCI6Q from STMicroelectronics is a high-performance microcontroller built around the ARM Cortex-M33 core at 160MHz. It provides 256KB flash and 274KB RAM in a compact 64-UFBGA package. Operating from 1.71V to 3.6V, it includes advanced features like Motor Control PWM, DMA, and brown-out detection, making it ideal for industrial and IoT applications.
- High Performance: 160MHz Cortex-M33 with DSP instructions accelerates complex algorithms.
- Large RAM: 274KB RAM supports data-intensive applications without external memory.
- Low Voltage Operation: 1.71V minimum enables battery-powered designs.
- Integrated Motor Control: Dedicated PWM and DMA simplify motor drive implementations.
Industrial Motor Control
With Motor Control PWM and DMA, this MCU enables precise, low-latency control loops for BLDC and PMSM motors in industrial drives.
Portable Medical Devices
The low 1.71V operation and multiple low-power modes make it suitable for battery-powered health monitors requiring long battery life.
Smart Building Automation
Its 160MHz Cortex-M33 with DSP instructions handles sensor fusion and communication protocols for HVAC and lighting controllers.
IoT Edge Nodes
With 256KB flash and rich analog peripherals, it can run edge AI models and connect to cloud via external modems.
Power Tools
The integrated motor control PWM and WDT ensure safe, reliable operation in high-vibration environments.
Robotics
Multiple timers and DMA channels support multi-axis servo control with deterministic response.
- Q: What is the maximum operating frequency of the STM32U535RCI6Q?
- A: The ARM Cortex-M33 core runs at up to 160 MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V.
- Q: How much flash and RAM does it have?
- A: It features 256KB flash and 274KB RAM.
- Q: What package is available?
- A: It comes in a 64-UFBGA package.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 85°C.
