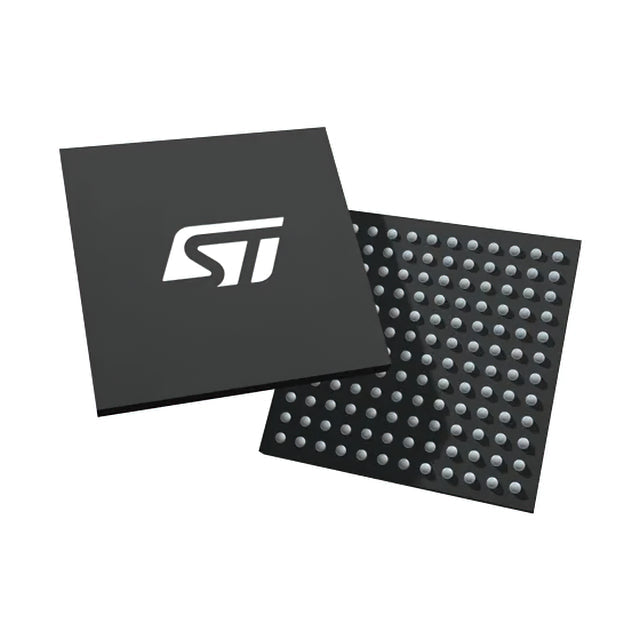

STMicroelectronics STM32U585AII6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $15.23 | $15.23 |
| 15+ | $10.01 | $150.15 |
| 25+ | $9.79 | $244.75 |
| 50+ | $9.25 | $462.50 |
| 100+ | $8.16 | $816.00 |
| N+ | $1.63 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32U5 |
| Packaging | Bulk | |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, MMC/SD/SDIO, SAI, SmartCard, SPDIF, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 136 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 784K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 24x12/14b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 169-UFBGA (7x7) |
| Package / Case | 169-UFBGA |
| ROHS |  |
The STM32U585AII6 from STMicroelectronics is a high-performance microcontroller built on the ARM Cortex-M33 core, running at up to 160MHz. It offers 2MB of flash memory and 784K x 8 of RAM, providing ample space for complex applications. With a supply voltage range of 1.71V to 3.6V and a wide operating temperature range, it is designed for demanding industrial and consumer applications. The device includes advanced features such as DMA, PWM, and brown-out detection, all housed in a compact 169-UFBGA package.
- High Performance: The 160MHz Cortex-M33 core delivers fast processing for real-time applications.
- Large Memory: 2MB flash and 784K RAM support complex firmware and data buffering.
- Low Power: Wide voltage range and low-power modes extend battery life in portable devices.
- Advanced Features: Integrated DMA, PWM, and motor control peripherals reduce external component count.
- Reliable Operation: Operates reliably from -40°C to 85°C, suitable for harsh environments.
Industrial IoT Gateways
With its 160MHz Cortex-M33 core and 2MB flash, the STM32U585AII6 can handle complex protocol stacks and edge computing tasks, making it ideal for industrial gateways that require secure, real-time data processing.
Smart Meters and Energy Management
The low-power modes and wide voltage range (1.71V-3.6V) enable battery-operated smart meters to run for extended periods while maintaining accurate measurement and communication capabilities.
Wearable Health Monitors
Its compact 169-UFBGA package and low-power features make it suitable for wearable devices that need to process biometric data continuously without frequent recharging.
Secure Access Control Systems
The integrated cryptographic features and DMA controllers support secure authentication and encrypted communication, essential for modern access control and security systems.
Motor Control for Robotics
The Motor Control PWM and multiple timers allow precise control of brushless DC motors in robotic applications, while the 160MHz speed ensures responsive feedback loops.
Portable Medical Devices
The combination of low power consumption, high processing capability, and reliable operation over -40°C to 85°C makes it suitable for portable diagnostic and monitoring equipment.
- Q: What is the maximum operating frequency of the STM32U585AII6?
- A: The STM32U585AII6 operates at up to 160 MHz.
- Q: What is the supply voltage range?
- A: It supports a supply voltage from 1.71V to 3.6V.
- Q: How much flash memory and RAM does it have?
- A: It features 2MB of flash memory and 784K x 8 of RAM.
- Q: What package is available?
- A: It comes in a 169-UFBGA package.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
