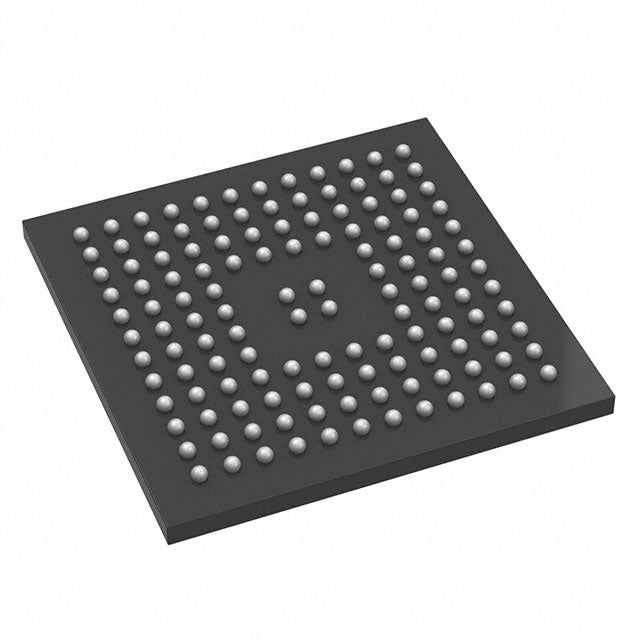

STMicroelectronics STM32U585QII3Q
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $15.61 | $15.61 |
| 15+ | $10.26 | $153.90 |
| 25+ | $10.04 | $251.00 |
| 50+ | $9.48 | $474.00 |
| 100+ | $8.36 | $836.00 |
| N+ | $1.67 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32U5 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, MMC/SD/SDIO, SAI, SmartCard, SPDIF, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 106 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 784K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 24x12/14b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 132-UFBGA (7x7) |
| Package / Case | 132-UFBGA |
| ROHS |  |
The STM32U585QII3Q from STMicroelectronics is a high-performance ARM Cortex-M33 microcontroller with TrustZone security, operating at 160MHz. It provides 2MB of flash and 784KB of RAM, ideal for advanced IoT and industrial applications. With a supply voltage range of 1.71V to 3.6V and a temperature range of -40°C to +125°C, it delivers exceptional flexibility and durability. The 132-UFBGA package enables compact system design.
- Advanced Security: Arm TrustZone provides hardware-isolated secure execution.
- High Performance: 160MHz Cortex-M33 with DSP instructions accelerates signal processing.
- Large Memory: 2MB flash and 784KB RAM support complex firmware and data buffers.
- Wide Operating Range: 1.71V-3.6V and -40°C to +125°C for extreme conditions.
- Rich Peripherals: LCD, motor control PWM, and DMA enhance system integration.
IoT Edge Devices
Arm TrustZone and low power modes enable secure, energy-efficient cloud connectivity.
Wearable Health Monitors
Ultra-low voltage (1.71V) and high temperature tolerance support body-worn sensors.
Smart Home Hubs
LCD controller and rich peripherals manage displays, sensors, and wireless modules.
Industrial Safety Systems
160MHz processing and motor control PWM ensure fast, deterministic responses in safety relays.
Portable Instrumentation
Large RAM and DMA facilitate high-speed data logging and signal analysis.
Automotive Aftermarket
125°C rating and robust features suit engine bay and exhaust monitoring units.
- Q: What core does this MCU use?
- A: It is based on the ARM Cortex-M33 core with TrustZone, running at 160MHz.
- Q: What is the memory capacity?
- A: It offers 2MB of flash and 784KB of RAM, supporting complex applications.
- Q: What is the temperature range?
- A: The device operates from -40°C to +125°C, suitable for extreme environments.
- Q: What package is available?
- A: It comes in a 132-UFBGA package, ideal for compact, high-density designs.
STM32U585QII3Q.pdf
- Q: What core does this MCU use?
- A: It is based on the ARM Cortex-M33 core with TrustZone, running at 160MHz.
- Q: What is the memory capacity?
- A: It offers 2MB of flash and 784KB of RAM, supporting complex applications.
- Q: What is the temperature range?
- A: The device operates from -40°C to +125°C, suitable for extreme environments.
- Q: What package is available?
- A: It comes in a 132-UFBGA package, ideal for compact, high-density designs.
